Description

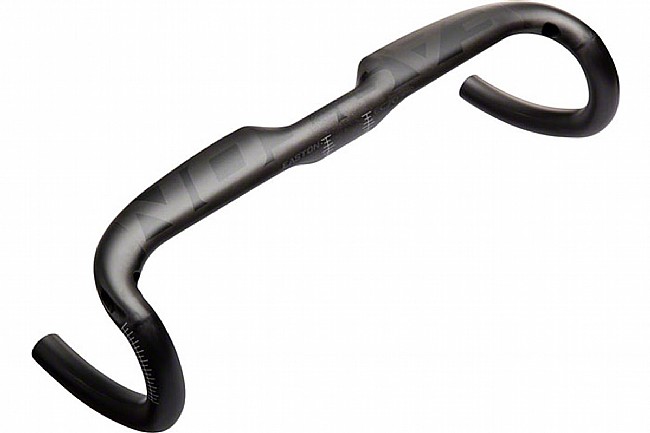

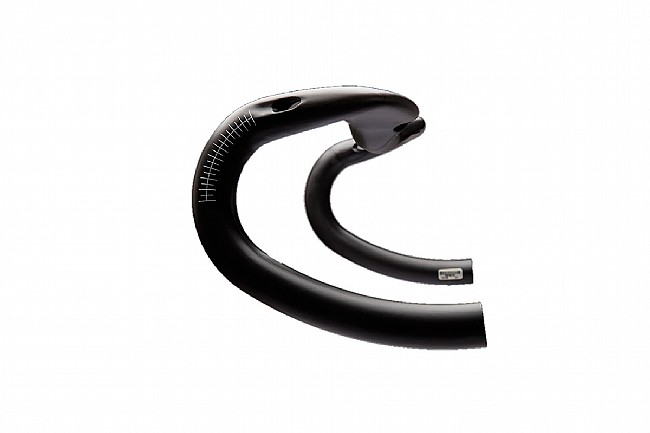

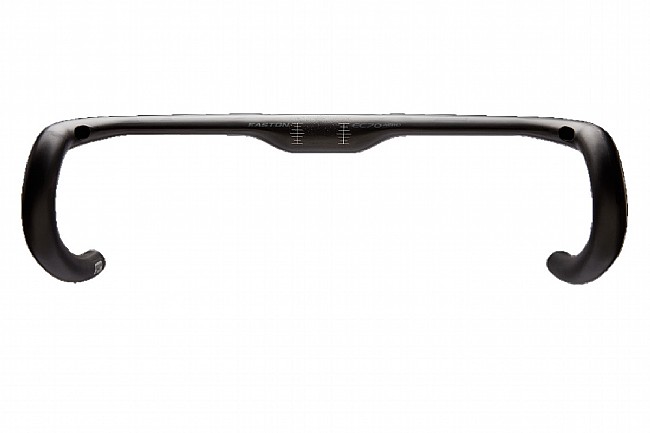

Easton's EC70 Aero Road Handlebar features a flattened top profile for improved aerodynamics and internal cable routing. Taperwall™ technology allows high stiffness at a low weight - weighing in at only 255g (42cm). MCD shape technology facilitates comfortable hand positioning. Intelligent Flexibility reduces road vibration for an even higher level of comfort.
See drop down menu for available handlebar widths.
Specs:
- Finish: Matte UD Carbon.
- Materials: EC70 Carbon.
- Weight: 255g (42cm).
- Clamp diameter: 31.8mm.
- Reach: 80mm.
- Drop: 125mm.
B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
Specifications
Handlebar Clamp: 31.8 mm | |
Handlebar Style: Drop Bars | |
Material: Carbon | |
Handlebar Shape: Aero | |
40 cm | Width: 40 cm |
Mfg PartNum: 8022082 | |
42 cm | Mfg PartNum: 8022083 |
Width: 42 cm | |
44 cm | Width: 44 cm |
Mfg PartNum: 8022084 | |
Reviews
These bars blend nicely with the wing shaped tubing of my Cervelo S3 road machine. Also, the internal cable routing is easy as pie due to the adequate hole size/ location. Even a Caveman could do it.
But what I really like is the flattish surface on the tops that provide a comfortable resting perch for your hands when climbing. When I first tested them, I only wrapped the outer portion and left the tops bare, like you see in many photos. I quickly found the bare, carbon tops to be too slippery, gloves or no. So I later put a full wrap on them and man, they are plush ! I really enjoy riding with these bars.
Overall, it's an expensive handlebar. Great.
Pros: Better vibration damping than my old aluminium cheapo handlebar, which was surprising. Cable routing is nice. Clean aerofoil section is nice. It's clean, stiff, and light; what's not to like?
Cons: Installation was a PITA. Overall, the internal cable routing seems alright, but there were multiple sharp edges on the *inside* of this part that kept binding my cables. These internal edges scuffed the full length of my cables, which is annoying. The binding cables also made drop installation and fitting even after the cable installation a pain. If you're making your LBS deal with this bar, no sweat, but they'll probably tack on at least an extra hour of labor just on principle, if not two.
Installation tips: First, if you're doing this yourself, you _absolutely_ _must_ get one of those cable routing kits. Honestly I'm surprised I didn't break my routing bits at multiple points, with some of the geometry required (you gotta use a lot of force to turn some of the corners). Second, and I can't stress this enough.. install the larger cables first. When I did my install, the geometry was flat-out impossible to get the large cables back out if the small ones went in first. The smaller (4mm) cables are more flexible, and being smaller allow better geometry to boot.
Comfortable bars used to smooth out the ride of an old road bike and even older rider. Slick internal cable routing. Five stars for fit, comfort and quality but three stars for price.
Purchased this handlebar for my aero bike, extremely satisfied with it! Lightweight, aero and I love the reach and drop of this bar. Internal cable routing somewhat tricky but I figured it out. Not as light as the EC90 aero bars but for the price, these work out just fine!!
Moved over from a Ritchey WCS alloy handlebar, after a crash, and this is noticeably smoother. The aero section is super comfortable for cruising and the drops are just right. Great handlebar!
