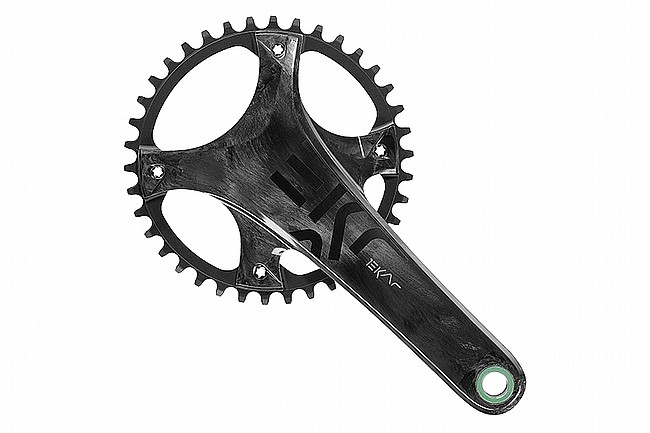

Campagnolo Ekar 1x13 Crankset
Click Here for Larger Image

Campagnolo Ekar 1x13 Crankset

Pricing and Order Section

Mfg PartNum:
Sale Ends
Tuesday
Purchase this popular item
today and save 35%
SALE: $233.97
MSRP: $359.95
That's 35% off
In Stock
Ships Free!
Earn $2.34 in VIP credit. Click to Learn More.
234
POINTS
This size is not eligible for VIP points
Price matches are is not eligible for VIP points


Description

One Chainring To Rule Them All: Ekar 13

The Campagnolo Ekar 1x13 crankset is the heart of the new Ekar gruppo, with its optimized gearing ratios and minimal steps between shifts.

Of course paring down to a single chainring is as simple as it gets – no front mech, significantly reduced weight, fewer moving parts to collect dirt or clog, and providing high chain security, with no wasteful gearing overlap – perfect for gravel riding and racing.

The unidirectional carbon fiber cranks feature a strong, durable 630-grade steel alloy crank axle – following the maxim of pairing strength and light weight employed across the Ekar groupset. New ProTech™ technology joins the two semi-axles inside the bottom bracket, with a single, oversized bolt. Oversized stainless steel bearings sit on the crank, fixed on the semi-axles, for maximum smoothness and strength – and easily accessible for inspection and maintenance without the requirement to extract the cups.

There are four chainring options ranging from 38 to 44T. The narrow-wide design provides efficient drive and maximum chain security. The light, strong 7075 aluminum rings are easily interchangeable – you can simply unbolt them from the four spider arms without removing the crankarms. Effortlessly adapt to different terrain by simply swapping out rings.

The Ekar crankset features four arm length options – 165, 170, 172.5 and 175mm – to suit riders of all sizes and styles. A narrow 145.5mm Q-factor creates a comfortable, efficient pedal stroke, whatever your size. The UD carbon arms come with neat, removable protective end caps, to keep components looking like new, whatever the terrain.

Features:

  • 2-piece cranks: ultra-torque 630 steel axle & UD carbon arms
  • 4 chainring options – Adventure (38T); Pure Gravel (40T), Fast Gravel (42T), Gravel Race (44T)
  • Narrow-wide tooth design – efficient drive & maximum chain security
  • ProTech BB with strong, efficient, self-aligning Hirth joint semi-axles
  • Easy access to external crank bearings
  • Easily interchangeable alloy rings
  • 4 crank arm lengths – 165, 170, 172.5 and 175mm
  • 123mm BCD
  • Q-factor – 145.5mm
  • Weight: 615 gr (172.5mm, 38T)

  • B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

    Specifications

    165mm - 40T Chainring

    Mfg PartNum: FC21-EK1360

    170mm - 38T Chainring

    Mfg PartNum: FC21-EK1308

    170mm - 40T Chainring

    Mfg PartNum: FC21-EK1300

    172.5mm - 38T Chainring

    Mfg PartNum: FC21-EK1328

    172.5mm - 40T Chainring

    Mfg PartNum: FC21-EK1320

    175mm - 38T Chainring

    Mfg PartNum: FC21-EK1358

    175mm - 40T Chainring

    Mfg PartNum: FC21-EK1350

    175mm - 42T Chainring

    Mfg PartNum: FC21-EK1352
