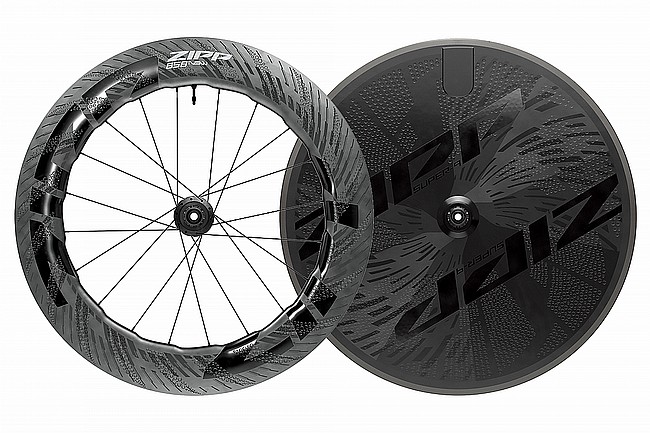

Zipp 858 NSW & Super-9 Disc Time Trial Wheelset

Description

The Ultimate Aero Weapon

The Zipp 858 NSW and Super-9 Disc Time Trial wheelset combines Zipp's fastest deep-rim front wheel with their premier rear disc wheel — a combination favored by triathletes and time trial specialists seeking maximum aero efficiency. Both wheels are built on Zipp's Total System Efficiency (TSE) technology, engineered to conquer the four barriers to speed: wind resistance, gravity, rolling resistance, and vibration losses.

858 NSW

The 858 NSW features Zipp's patented Sawtooth profile — an undulating 82-85mm deep rim shape delivering top aero efficiency and crosswind stability. The hookless tubeless rim profile creates a seamless tire interface and significant weight reduction, giving you the benefits of deep rims at weights typically associated with rims 20mm shallower. The 23mm internal width is ideal for wider tires at lower pressures for decreased rolling resistance. The 858 NSW is built around the premium ZR1 SL hubset with ceramic bearings and 66 points of engagement.

Super-9 Disc

Among the lightest disc wheels available, the Super-9's refined shape runs wide and parallel from the hub until it feathers inward to meet the hookless tire bed. Redesigned from the rim-tire interface to its ceramic bearings, the Super-9 is significantly stiffer and more durable than its predecessor. It comes with an integrated TyreWiz 2.0 tire pressure monitor and a redesigned pump-access port — no stickers needed. Like the 858 NSW, the Super-9 features the premium ZR1 hub with ceramic bearings and 66 points of engagement.

Features:

• Mixed wheelset combining Zipp's fastest deep-rim front and premier rear disc wheel, ideal for triathlon and time trial
• Total System Efficiency (TSE) technology on both wheels for reduced rolling resistance and greater efficiency
• 858 NSW: Sawtooth rim with Hyperfoil nodes and HexFin ABLC dimple pattern for superior aero and crosswind stability
• 858 NSW: 30g lighter than previous model with optimized tire bed for easy installation
• 858 NSW: ZR1 SL hubset with ceramic bearings and 66 points of engagement
• Super-9: Integrated TyreWiz 2.0 tire pressure monitor (10g), perfectly balanced and out of sight
• Super-9: Redesigned pump-access port with integrated cover — no sticker needed. Ships with pump chuck adapter
• Super-9: ZR1 hub with ceramic bearings and 66 points of engagement
• Both wheels optimized for tubeless setup with option to run tubes with tubeless tires
• Centerlock disc brakes with lockrings included on both wheels
• Graphics applied using Zipp's ImPress direct-print technology
• Zipp wheel bag and disc protector for travel included
• Lifetime Warranty

Specs:

• Wheel Size: 700c (622 ISO)
• Rim Construction: Tubeless Straight Side (TSS) hookless
• Tire Compatibility: Tubeless tire only, option to run inner tubes with threaded valve
• Optimal Tire Size: 28mm minimum
• Braking: Centerlock disc (lockrings included)
• Freehub: XDR or HG (Campagnolo sold separately)
• 858 NSW Rim Depth: 82-85mm
• 858 NSW Rim Width (Internal): 23mm
• 858 NSW Weight: 719g
• Super-9 Internal Rim Width: 23mm (30.4mm external)
• Super-9 Weight: 1,050g

FREE Cassette Installation - Order a cassette along with a wheelset and we can install the cassette for free. Cassette installation requires special tools that not all our customers have. The cassette will be professionally installed and torqued to spec. Just add "Please install cassette" to your order notes at checkout and we'll take care of you.

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

Please note: This product ships signature required.
