Improved Rigidity, Aero Rims, & Less Weight
Introducing The Shimano WH-R9270 C60-TL Dura-Ace Disc Wheelset.
Built with aerodynamics, weight, and rigidity in mind, the tubeless-ready, full carbon WH-R9270 C60-TL Dura-Ace Disc Wheelset features a 12-speed freehub body specifically designed for the new 12-Speed Dura-Ace groupset.
The completely redesigned Dura-Ace R9200 C60 blends low rolling weight with optimal rigidity for sprinting or breakaway efforts.

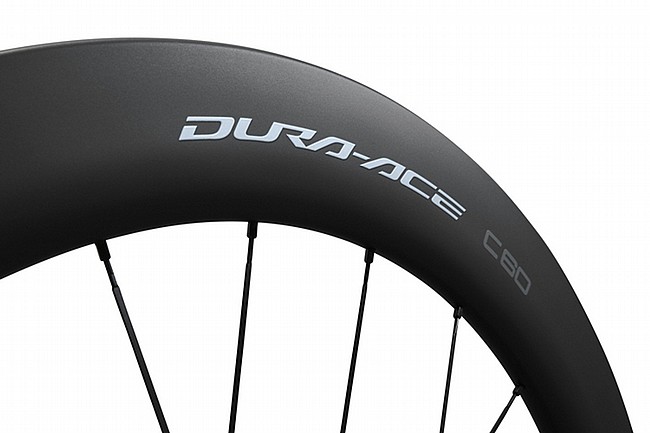

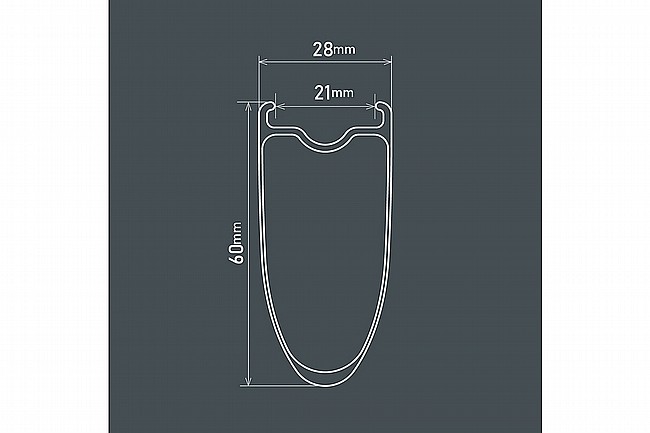

The full-carbon, tubeless wheel lineup features wider 21mm internal rim widths suited for modern road tires, and the 60mm rim depth is designed to optimize aerodynamic performance across a diverse range of conditions.

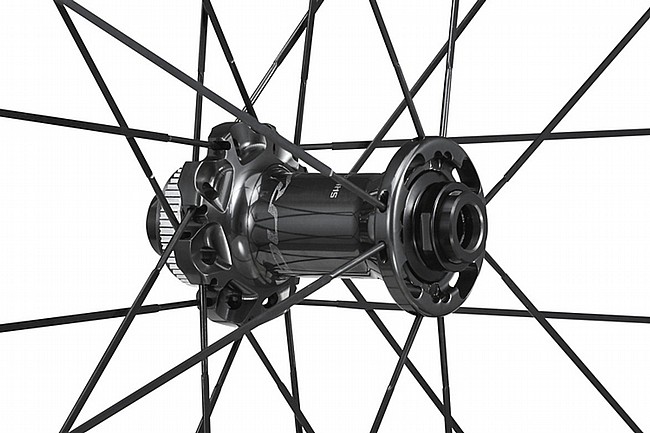

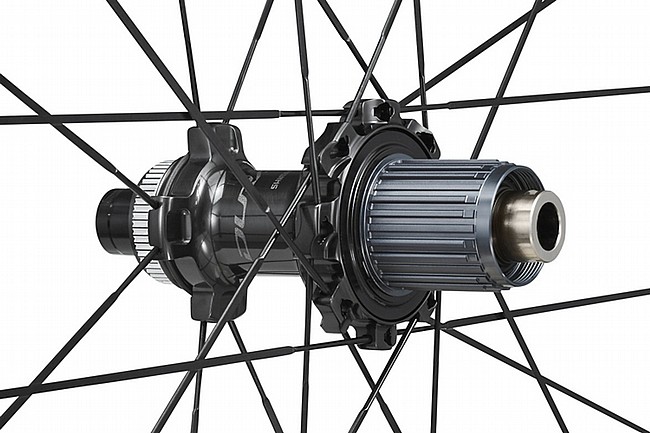

Shimano's new 'Direct Engagement' freehub structure provides increased driving rigidity for a more direct pedaling feeling, especially when accelerating. Despite the improved rigidity, the new Dura-Ace wheels and hubs do not compromise when it comes to weight.
The 'Direct Engagement' freehub shaves an impressive 45 grams while the full carbon rims and new spokes and nipples drop the overall weight of the new C60-TL significantly.
The C60 also receives stiffer spokes, 1.8 mm instead of 1.5 mm. Tested by our professional athletes, this focus on the lateral rigidity of C60 allows you to push harder in corners and when maneuvering at higher speeds. The new wind-tunnel tested, deep-section rims feature a faster, more stable cross-section that time trialists, triathletes, and sprinters alike will enjoy.
- Aero wheels for sprinting and high-speed pursuits
- Optimized lateral rigidity for sprinting and larger riders
- 63% increase in driving rigidity versus current C40-TL wheels
- Front and rear 2:1 spoke pattern for 10% increase in rigidity
- HR: High-Rigidity ver. +20% increased lateral rigidity for powerful riders and sprinters
- Centerlock rotor mounts
- Weight: 1609g
FREE Cassette Installation - Order a cassette along with a wheelset and we can install the cassette for free. Cassette installation requires special tools that not all our customers have. The cassette will be professionally installed and torqued to spec. Just add "Please install cassette" to your order notes at checkout and we'll take care of you. Please Note: If our inventory allocation requires that we ship your wheels and cassette from different warehouses, we will not be able to offer this service.
B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
The product weight specified is an approximate weight based on the manufacturer's specifications (if available) or our measurement of one or two examples. For most products, the weight will typically vary by 5% to 10%.
Please note: This product ships signature required.
Rim Depth: 60mm
Brake Rotor Mount: Centerlock
Tire Size Recommendation: 700x25-32c
Pair - 12 speed - 12x100/12x142, Centerlock
Mfg PartNum: EWHR9270C60LFEREDX
Brake Compatibility: Centerlock Disc
Cassette Type: Shimano 12

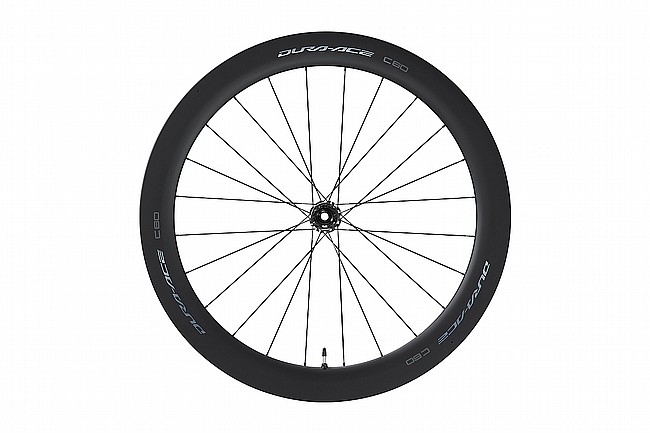

Front Wheel - 12x100, Centerlock
Mfg PartNum: EWHR9270C60LFEDX

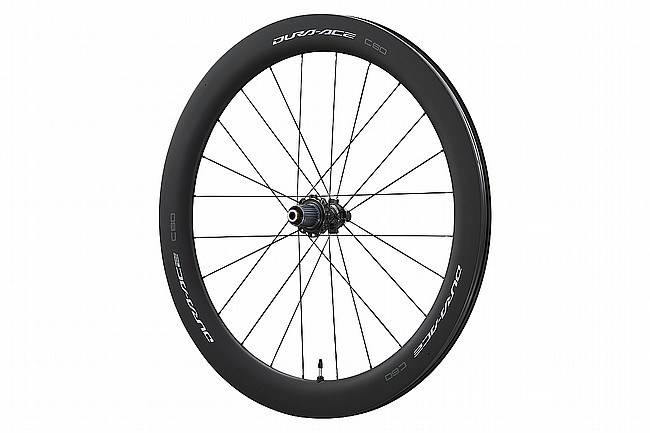

Rear Wheel - Shimano 12 speed - 12x142, Centerlock
Mfg PartNum: EWHR9270C60LREDX
