Improved Rigidity, Reduced Drag, & Less Weight

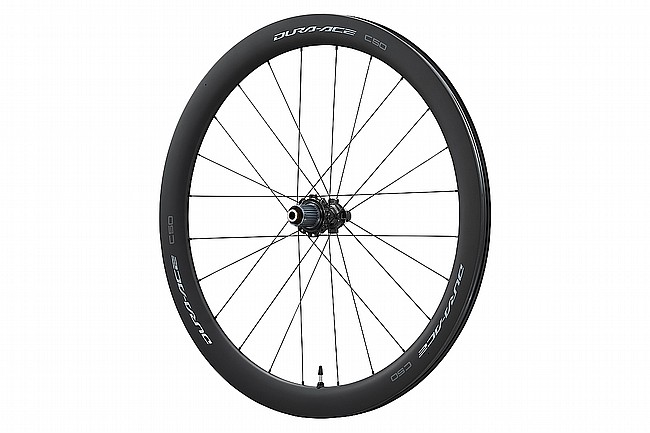

Introducing The Shimano WH-R9270 C50-TL Dura-Ace Disc Wheelset.
Built with aerodynamics, weight, and rigidity in mind, the tubeless-ready, full carbon WH-R9270 C50-TL Dura-Ace Disc Wheelset features a 12-speed freehub body specifically designed for the new 12-Speed Dura-Ace groupset.
The completely redesigned Dura-Ace R9200 wheel line-up blends low rolling weight with optimal rigidity for sprinting or breakaway efforts.
The full-carbon, tubeless wheel lineup features wider 21mm internal rim widths suited for modern road tires, and the 50mm rim depth is designed to optimize aerodynamic performance across a diverse range of conditions.

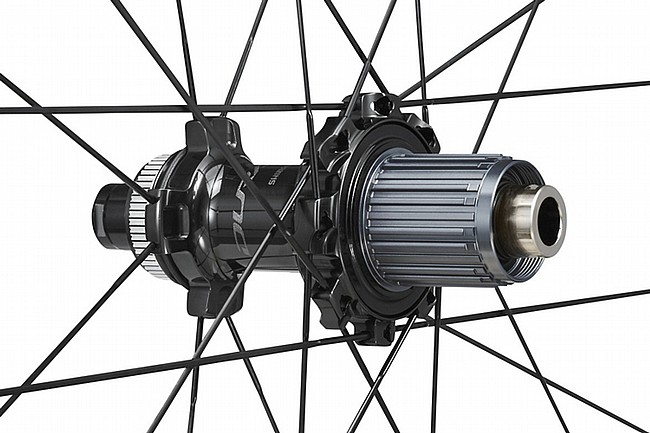

Shimano's new 'Direct Engagement' freehub structure provides increased driving rigidity for a more direct pedaling feeling, especially when accelerating. Despite the improved rigidity, the new Dura-Ace wheels and hubs do not compromise when it comes to weight.
The 'Direct Engagement' freehub shaves an impressive 45 grams while the full carbon rims and new spokes and nipples drop the overall weight of the new C50-TL wheels by over 161 grams compared to the current, shallower C40-TL wheels.
- All-around wheels for crits, stage races, time-trials, & all-day efforts
- The perfect balance of aerodynamics, rigidity, and lightweight construction
- 5-watt reduction in drag compared to current C40-TL wheels
- Front 1:1 standard spoke lacing & rear 2:1 Optbal spoke lacing
- Weight: 1461g
FREE Cassette Installation - Order a cassette along with a wheelset and we can install the cassette for free. Cassette installation requires special tools that not all our customers have. The cassette will be professionally installed and torqued to spec. Just add "Please install cassette" to your order notes at checkout and we'll take care of you. Please Note: If our inventory allocation requires that we ship your wheels and cassette from different warehouses, we will not be able to offer this service.
B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
The product weight specified is an approximate weight based on the manufacturer's specifications (if available) or our measurement of one or two examples. For most products, the weight will typically vary by 5% to 10%.
Please note: This product ships signature required.
Brake Compatibility: Centerlock Disc
Cassette Type: Shimano 12
Tire Compatibility: Clincher Tubeless Ready
Wheel Features: Disc Brake Compatible
Internal Rim Width: 21mm
Rim Depth: 50mm
Weight: 1461 g
Brake Type: Centerlock
Tire Size Recommendation: 700x25-32c
Tubeless Ready: Yes
Ratchet System: Direct Engagement
Pair - 12 speed - 12x100/12x142, Centerlock
Mfg PartNum: EWHR9270C50LFEREDX
Front Wheel - 12x100, Centerlock
Mfg PartNum: EWHR9270C50LFEDX
Rear Wheel - Shimano 12 speed - 12x142, Centerlock
Mfg PartNum: EWHR9270C50LREDX
