Shimano GRX RD-RX817 11-Speed Di2 Rear Derailleur Shimano GRX RD-RX817 11-Speed Di2 Rear Derailleur
Click Here for Larger Image

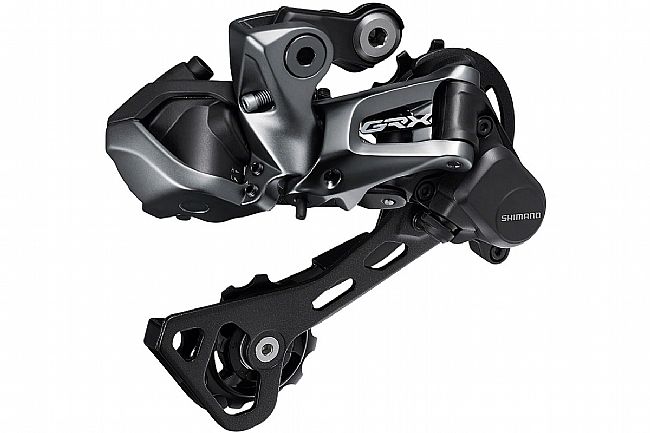

Shimano GRX RD-RX817 11-Speed Di2 Rear Derailleur

Mfg PartNum:IRDRX817
Out of Stock
Ships Free!
Earn $33.49 in VIP credit. Click to Learn More.
This condition is not eligible for VIP points
Please Confirm Condition

Backorder: This item is currently out of stock but is available to purchase today as a backorder. The expected availability date shown above is our best estimate as to when it will be shipped to you, but this date is subject to change based on our receipt of this item from its vendor. Shipping in the continental US is free for all backorder items (for international orders, our customer service team will contact you when the item is available to ship). Your credit card will not be charged until your item ships (Paypal requires payment up front, but you can cancel for full refund). Anytime prior to shipment, your backorder can be cancelled by contacting our customer service team.

GRX RD-RX817 11-Speed Di2 Rear Derailleur

With an integrated chain stabilizer mechanism, the Shimano GRX RD-RX817 11-Speed Di2 Rear Derailleur provides a quieter experience and shifting security and precision on mixed terrain.

For rides on smooth surfaces, the derailleur features and ON/OFF switch for the chain tensioner. The RD-RX817 DI2 version offers the digital precision of SHIMANO electronic shifting and synchronized shifting. and is compatible with mtb cassettes with a 42T low sprocket max.


  • Silent and uninterrupted rear shifting on rough terrain
  • Operates with Shimano Di2 for digital electronic shifting
  • Adjustable chain stabilizer prevents chain slapping and drops
  • Smooth and reliable mixed surface shifting
  • Switch stabilizer ON/OFF to match the terrain
  • Gravel-tuned clutch tension
  • Compatible with current road DUAL CONTROL LEVER

  • B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

    The product weight specified is an approximate weight based on the manufacturer's specifications (if available) or our measurement of one or two examples. For most products, the weight will typically vary by 5% to 10%.

    Model Number: RD-RX817

    Series: SHIMANO GRX DI2

    Weight: 318 g

    Direct Attachment: Yes

    E-tube connector (pcs):

    E-tube port (pcs):

    Firmware update by E-TUBE Project: Yes

    Fluoric coated link bushings:

    Low sprocket: 42T (max) / 40T (min)

    Rear Speeds: 11

    Sealed bearing guide pulley: Yes

    Sealed bearing tension pulley: Yes

    Top-Normal Spring Type: SHADOW RD plus

    Top sprocket: 11T (Max/Min)

    Total Capacity: 31T

    Ordered by Most Relevant First
    5 stars
    4 stars
    3 stars
    2 stars
    1 stars
    Reviewed 10/12/2020
    Cycling Enthusiast
    Seattle area
    Value Rating
    Overall Rating
    It does what Shimano says, AND MORE!

    I installed this on my Co-Motion Tandem, running DI2 Ultegra 8070 group. First, being a tandem, a wide gear range is needed. Second, road DI2 only runs 2X drivetrains. Third, I use a FSA Gossamer triple crankset, using only the middle and big rings as a double. This means the smallest available chainring is a 39T ring. I run an 11-40 SRAM cassette. The GRX RD-RX817 11-Speed Di2 Rear Derailleur is spec'd to run an 11-40 or 11-42 cassette, but for a 1X drivetrain. Well, the drivetrain shifts super smooth now! It works flawlessly with the 2X drivetrain, including the auto shift functions. It's well worth the money.
