Shimano Dura-Ace FC-R9200 12-Speed Crankset
Shimano Dura-Ace FC-R9200 12-Speed Crankset
Shimano Dura-Ace FC-R9200 12-Speed Crankset
Shimano Dura-Ace FC-R9200 12-Speed Crankset
Shimano Dura-Ace FC-R9200 12-Speed Crankset
Shimano Dura-Ace FC-R9200 12-Speed Crankset
Shimano Dura-Ace FC-R9200 12-Speed Crankset
Click Here for Larger Image
Shimano Dura-Ace FC-R9200 12-Speed Crankset 4
Shimano Dura-Ace FC-R9200 12-Speed Crankset 3
Shimano Dura-Ace FC-R9200 12-Speed Crankset 2
Shimano Dura-Ace FC-R9200 12-Speed Crankset 1
Shimano Dura-Ace FC-R9200 12-Speed Crankset 7
Shimano Dura-Ace FC-R9200 12-Speed Crankset 6
Shimano Dura-Ace FC-R9200 12-Speed Crankset 5

Shimano Dura-Ace FC-R9200 12-Speed Crankset

(3)

Pricing and Order Section

Mfg PartNum:
$624.99
MSRP: $624.99
That's off
In Stock
Ships Free!
Earn $12.50 in VIP credit. Click to Learn More.
1250
POINTS
This model is not eligible for VIP points
Price matches are is not eligible for VIP points


Description

Turn The Same Cranks As World Tour Pros

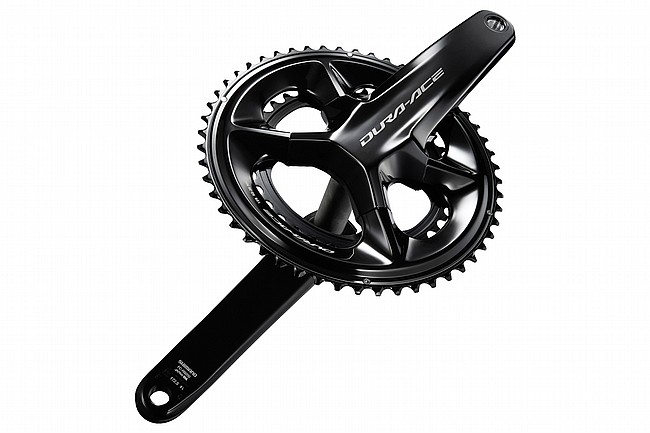

Introducing the Shimano Dura-Ace FC-R9200 12-Speed Crankset, the same cranks turned by World Tour riders over the highest peaks and across the most famous finish lines.

At the request of WorldTour teams, the Dura-Ace R9200 crankset features an optional 54-40T chainring combination. More efficient than smaller options, the 54-40T is the best response to the ever-increasing speeds of racing's top tier.

The new Dura-Ace 12-speed crankset comes with 50-34T, 52-36T, and 54-40T options along with the choice of 160mm, 165mm, 167.5mm, 170mm, 172.5mm, 175mm, and 177.5mm crank arm lengths.

The Dura-Ace FC-R9200 crank performs two vital functions: transferring your pedaling effort into the drivetrain and ensuring the fastest, most precise front shifting available.

With HOLLOWTECH II crank arms to ensure lightweight and Shimano's class-leading chainring designs, the FC-R9200 is a component to rely on, day-in and day-out.

Features

  • Optimal balance of stiffness, strength, weight and rotational performance
  • HOLLOWTECH II technology maximizes a rider's power transfer in the crankset
  • The strongest ultralightweight crankset Shimano can make
  • 50-34T, 52-36T, and 54-40T options
  • 160mm, 165mm, 167.5mm, 170mm, 172.5mm, 175mm, and 177.5mm crank arm lengths
  • Average weights: 714g (54-40T) 692g (52-36T) 685g (50-34T)

Returns: Openbox, B-Stock, and Closeout products can be returned within 60 days for store credit.

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

Please note: This product ships signature required.

Specifications

Discipline: Road

Average weight: 714g (54-40T) 692g (52-36T) 685g (50-34T)

Q-Factor: 148 mm

Chain Line: 44.5mm

Compatible chain: CN-M9100

P.C.D.: 110 mm

Crank Fixing Bolt Included: Yes

BB_Pressfit: SM-BB92-41B

BB_Threaded: BB-R9100

BB Shell Width: 68 mm

160mm - 50/34Tooth

Mfg PartNum: IFCR9200MX04

Crank Arm Length: 160 mm

160mm - 52/36Tooth

Crank Arm Length: 160 mm

Mfg PartNum: IFCR9200MX26

160mm - 54/40Tooth

Mfg PartNum: IFCR9200MX40

Crank Arm Length: 160 mm

165mm - 50/34Tooth

Mfg PartNum: IFCR9200AX04

Crank Arm Length: 165 mm

165mm - 52/36Tooth

Crank Arm Length: 165 mm

Mfg PartNum: IFCR9200AX26

165mm - 54/40Tooth

Mfg PartNum: IFCR9200AX40

Crank Arm Length: 165 mm

167.5mm - 50/34Tooth

Mfg PartNum: IFCR9200BX04

Crank Arm Length: 167.5 mm

167.5mm - 52/36Tooth

Crank Arm Length: 167.5 mm

Mfg PartNum: IFCR9200BX26

170mm - 50/34Tooth

Mfg PartNum: IFCR9200CX04

Crank Arm Length: 170 mm

170mm - 52/36Tooth

Crank Arm Length: 170 mm

Mfg PartNum: IFCR9200CX26

170mm - 54/40Tooth

Mfg PartNum: IFCR9200CX40

Crank Arm Length: 170 mm

172.5mm - 50/34Tooth

Crank Arm Length: 172.5 mm

Mfg PartNum: IFCR9200DX04

172.5mm - 52/36Tooth

Mfg PartNum: IFCR9200DX26

Crank Arm Length: 172.5 mm

172.5mm - 54/40Tooth

Mfg PartNum: IFCR9200DX40

Crank Arm Length: 172.5 mm

175mm - 50/34Tooth

Crank Arm Length: 175 mm

Mfg PartNum: IFCR9200EX04

175mm - 52/36Tooth

Mfg PartNum: IFCR9200EX26

Crank Arm Length: 175 mm

175mm - 54/40Tooth

Crank Arm Length: 175 mm

Mfg PartNum: IFCR9200EX40

177.5mm - 52/36Tooth

Mfg PartNum: IFCR9200FX26

Crank Arm Length: 177.5 mm

Reviews

Ordered by Most Relevant First
5 stars
4 stars
3 stars
2 stars
1 stars
(3)
(0)
(0)
(0)
(0)
(100%)
(0%)
(0%)
(0%)
(0%)
Reviewed 12/21/2023
by CYinPA
Competitive Racer
PA
Value Rating
Overall Rating
1 of 2 customers found this review helpful.
Great shifting, never does anything wrong

The one and only thing that you can get as a performance gain from using Shimano cranksets, is the ridiculously good shifting. They're crankarms, they spin around and you don't really notice something being stiffer, more aero, etc. But when you shift a Di2 Shimano front derailleur, on their rings, the system just works.

I can't really fault anything with them, I know the recall made people scared and the aftermarket brands are getting more traction, but I wash my stuff and take care of it, and the lifespan at the point of something snapping in half under my 70kg frame is way beyond my caring level.

Shimano stuff is expensive, especially the DA level stuff. If you have the money and realize it's doing nothing for you in terms of performance, have at it, it's your money do what you want with it. I go for Shimano for the shifting, I swear it works so well you forget about it.

Great product, average value, but it's on my bike either way right now.

Was this review useful to you? Yes/No
Thank you for your feedback.
Reviewed 7/27/2024
by DN
Cycling Enthusiast
So - Cal
Value Rating
Overall Rating
The gold standard

Went for the longer version 177.5mm, for my long legs. Easy installation. One of the few things you can install and forget about, for a very long time.

Was this review useful to you? Yes/No
Thank you for your feedback.
Reviewed 10/6/2023
by Anonymous
Cycling Enthusiast
Florida
Value Rating
Overall Rating
Works Like a Charm

Upgraded my 11 Speed Dura-Ace with 12 Speed. Curious about the new design / mfg.

Like with all Shimano products - It just works + Looks great too.

It shifts faster than 11 speed which is pretty amazing.

Happy with the purchase

Was this review useful to you? Yes/No
Thank you for your feedback.
