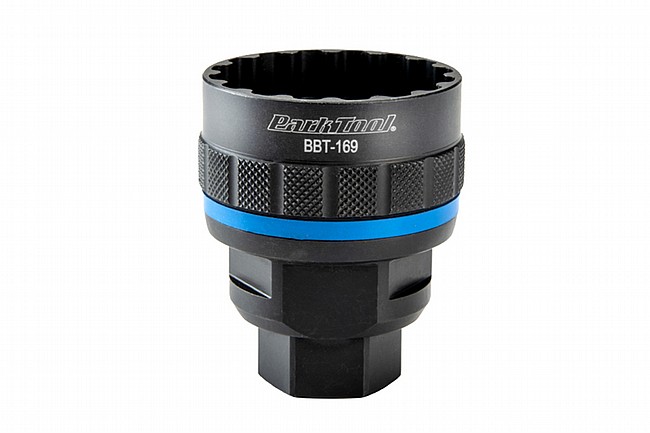

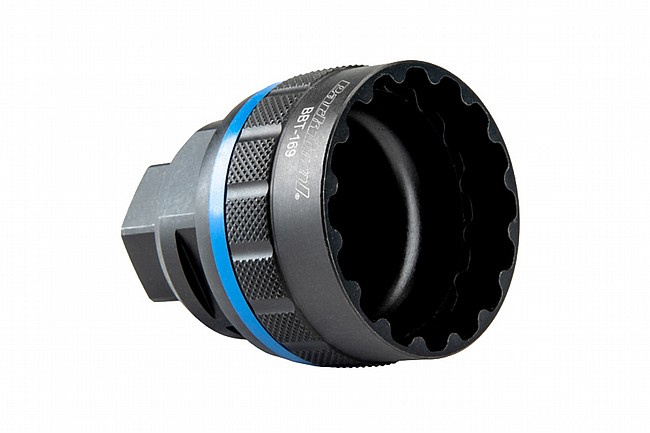

Park Tool BBT-169 Steel Bottom Bracket And Lockring Tool

Description

BBT-169

Constructed from precision-machined 4140 steel, the Park Tool BBT-169 is a heavy duty tool for the removal and installation of select components with 16-notch tool fittings, including bottom brackets, center lock disc brakes, and e-bike motor lockrings.

The BBT-169 is designed to be compatible with any bottom bracket with the corresponding tool fitting, with an extra-deep body to accommodate extra-wide spindles and low-profile walls at the point of engagement for recessed lockrings.

The BBT-169 has three methods of tool engagement—a 3/8" drive fitting, a 1" hex fitting, and 36 mm wrench flats—allowing you to take on even the most seized bottom bracket cups.

For added stability, the BBT-169 features integrated threads for use with the Park Tool BBT-RS Bottom Bracket Tool Retaining System or GPS-1 Guide Pins (each sold separately).

Features:

• 3/8" drive fitting.
• 1" and 36 mm wrench flats.
• 50.04 mm (1.97") outer diameter at point of engagement.
• Internal clearance: 42 mm (1.654") depth (from tool face) x 30.44 mm (1.198") diameter.
• Not rated for use with impact drivers.

Fits 16-notch tool fittings with a major diameter (outside of notches) of 44–45 mm and a minor diameter (inside of notches) of 42.7 mm, including:

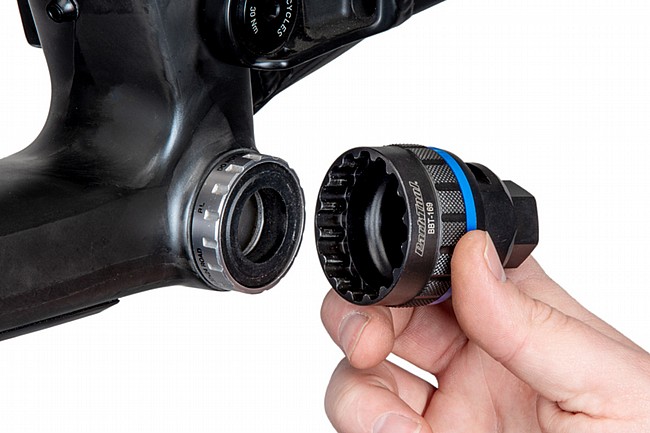

• Shimano® BB80, BB5700, XT® BB70, BB51, and previous external bearing threaded bottom bracket cups.
• Threaded bottom bracket cups from Campagnolo®, Chris King®, FSA® MegaExo®, Hope™, SRAM®/Truvativ® GXP®, Race Face® X-type, Surly®, Wheels®, Fulcrum®, and others.

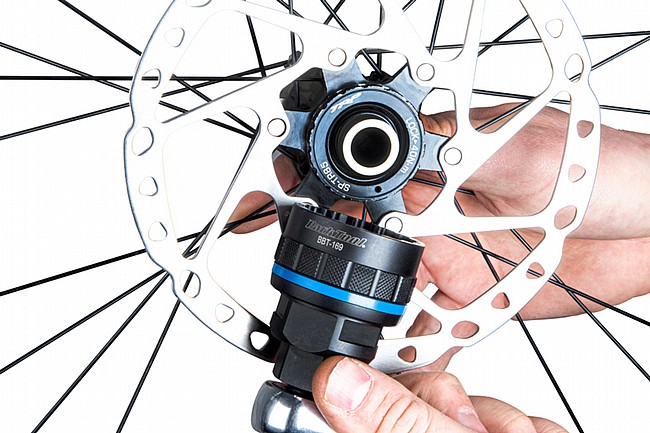

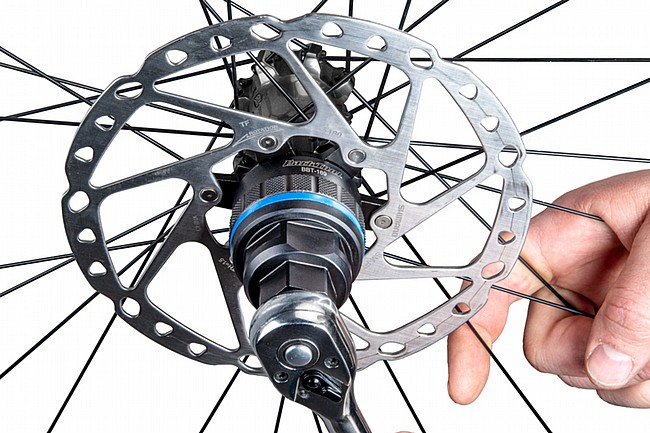

• Center lock disc brake rotor lockrings.
• Bafang BBSH, BBS02 mid-drive motor lockrings.

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
