Hold Fast, Torque Hard

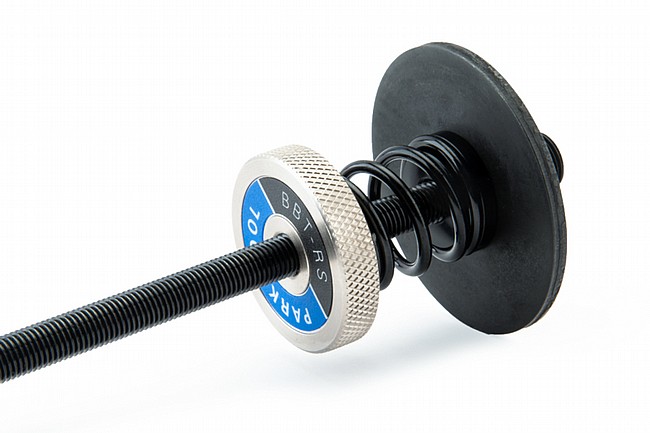

The Park Tool Bottom Bracket Tool Retaining System, used in conjunction with nearly any Park Tool bottom bracket tool, uses a spring-based tension system to apply consistent, adjustable pressure to the tool, ensuring full engagement with the tool fitting and preventing slippage.
Bottom brackets have some of the highest torque specs of any component found on a bicycle. Despite this, some bottom bracket cups feature tool fittings that allow mere millimeters of engagement, which can be a problem when attempting removal or installation. Not so with the BBT-RS. This tool can be configured for use with the vast majority of threaded and thread-together bottom bracket standards. The BBT-RS features an M8 threaded rod and a double-sided adapter nut with M12 and M15 threads, allowing it to thread directly into any compatible cartridge bottom bracket. The M15 adapter can also be used to install any of Park Tool's nine aluminum bottom bracket tools, all of which feature integrated threading for use with the BBT-RS.
- Compatible with Threaded cup, Thread-together, Cartridge, and Cup-and-cone bottom brackets.
- Compatible with the following bottom bracket tools:
- Socket-style aluminum bottom bracket tools: BBT-27.3, BBT-35-12, BBT-36-36, BBT-47-12, BBT-47-16, BBT-69.3, BBT-79.3
- Wrench-style bottom bracket tools with a handle (e.g. Park Tool BBT-9, BBT-29, HCW-4)
- Bottom bracket tools with external wrench flats (e.g. Park Tool BBT-19.2, BBT-22)

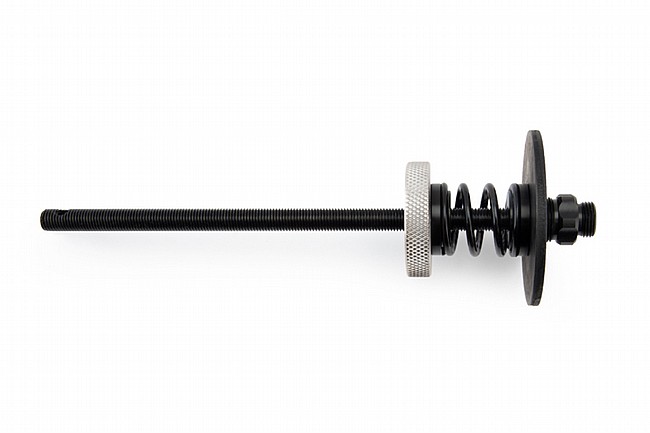

- Rod length: 175 mm (6.9")
- Rod threading: M8 x 1.0
- Adapter nut threading: M12 x 1.0 & M15 x 1.0
- Speed nut diameter: 38 mm (1.5")
- Washer diameter: 57 mm (2.25")
B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
