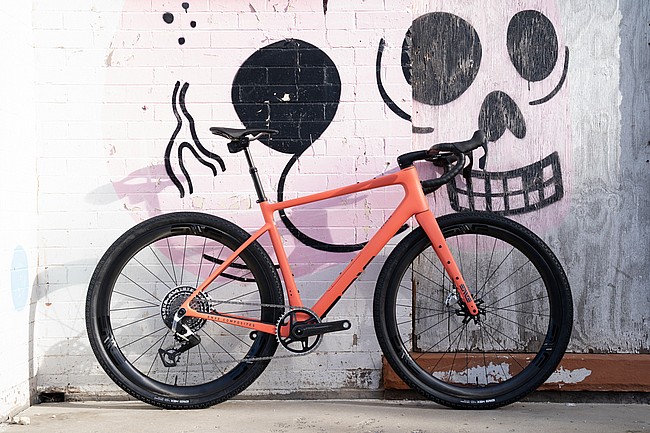

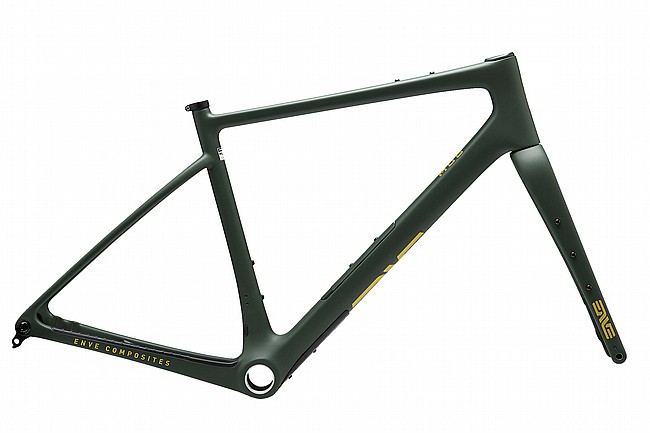

ENVE MOG Gravel Frameset Slate Blue
ENVE MOG Gravel Frameset Terracotta
ENVE MOG Gravel Frameset Sand
ENVE MOG Gravel Frameset
ENVE MOG Gravel Frameset
ENVE MOG Gravel Frameset
ENVE MOG Gravel Frameset
ENVE MOG Gravel Frameset
ENVE MOG Gravel Frameset
ENVE MOG Gravel Frameset
ENVE MOG Gravel Frameset
ENVE MOG Gravel Frameset
ENVE MOG Gravel Frameset
Slate Blue
Click Here for Larger Image
ENVE MOG Gravel Frameset 39
ENVE MOG Gravel Frameset 40
ENVE MOG Gravel Frameset 38
ENVE MOG Gravel Frameset 17
ENVE MOG Gravel Frameset 14
ENVE MOG Gravel Frameset 15
ENVE MOG Gravel Frameset 16
ENVE MOG Gravel Frameset 13
ENVE MOG Gravel Frameset 12
ENVE MOG Gravel Frameset 31
ENVE MOG Gravel Frameset 30
ENVE MOG Gravel Frameset 29
ENVE MOG Gravel Frameset 41

ENVE MOG Gravel Frameset

Pricing and Order Section

Mfg PartNum:
$4,450.00
MSRP: $4,450.00
That's off
In Stock
Ships Free!
Earn $267.00 in VIP credit. Click to Learn More.
26700
POINTS
This size is not eligible for VIP points
Price matches are is not eligible for VIP points


Description

Gravel Racing, Riding, Exploration, & Adventure

From the Flint Hills of Kansas to the Foothills of Ogden, the ENVE MOG was designed to go fast, in confidence, over any terrain you deem appropriate to MOG. With six frame sizes and three unique fork rakes, the MOG has been designed to ensure that optimal handling is achieved regardless of frame size.

Modern gravel riders demand versatile durability, in-frame storage, tire clearance and much more. The MOG has been designed with the versatility required to allow you to build your ultimate off-road drop bar machine. Run 40's to go fast, and maximize mud clearing capabilities. Run 50's to maximize traction, volume, and fun. The MOG, like all ENVE products, has been extensively tested and qualified in the lab and trail to ensure an ENVE worthy ride and ownership experience.

Fit Is Fast

The ENVE chassis is the canvas upon which you can build and create your dream bike. What is a chassis? A chassis consists of a frame, fork, headset, handlebar, stem, and seatpost (saddle not included). For a "rolling chassis," just add your favorite ENVE SES, G Series, or Foundation wheelset.

The MOG features a round 27.2mm seat tube allowing for use with ENVE's carbon seatposts or the G Series Dropper Seatpost, ensuring your MOG is ready for whatever you intend to throw at it.

The MOG is available in six frame sizes, and three fork rakes, while the handlebar, stem, and seatpost options are a la carte. These options make the MOG the most readily customizable fixed geometry gravel bike on the market.

Ready To Roam

With the MOG debuts the Cargo Bay, a modular in-frame storage solution that can be configured to carry anything from flat repair and survival supplies to personal accoutrements. Each MOG comes complete with 2 x Cargo Bags constructed of durable yet lightweight neoprene which serve to protect your stuff while preventing unwanted rattling in the down tube. The Cargo Bags may be run concurrently with one running up while the other runs down the down tube.

ENVE's IN-Route System is designed to hide hoses and wires from the wind, improving the bikes aero performance with a practical and user-friendly solution. To further aid in hose/wire management and noise prevention, the MOG features a hose/wire/cable retention strap that secures the hoses to the inside wall of the down tube. This strap can be easily accessed by removing the Cargo Bay's door.

Build It Your Way

Part One of your full ENVE Frameset. Please contact Customer Service to complete your build with integrated handlebars, stem, and seatpost. Enve Handlebar, Seatpost and Stem not included with Frameset.

Features:

  • Lightweight and durable carbon construction
  • Confidence inspiring handling and control
  • ENVE IN-Route Internal Routing System
  • Dropper post compatible (1X drivetrains only)
  • 36 cubic inches / .6 liters of in-frame storage with bags included
  • Anti-rattle hose retention
  • ENVE Factory Warranty

Specs:

  • 12x142 / 12x100 Thru-Axle
  • Flat mount Disc Brake
  • 700c x 40-44mm Optimized, 35-50mm Min/Max
  • T47 inboard bearing bottom bracket shell
  • ENVE Integrated IS52/IS52 Internal Drop-In Headset
  • 1x or 2x Electronic or Mechanical drivetrain compatibility
  • NOT Compatible with SRAM or Campagnolo Mechanical 2x
  • 27.2mm seat tube
  • 2 Standard Bottle Cage Mounts
  • Top Tube & Down Tube Mounts
  • Fender Mounts
  • 950 grams (Size 56 frame without hardware)

Returns: This product is overweight and/or oversize and does not qualify for our fixed rate return shipping label. If you need to return this item, we can offer a return shipping label at our discounted shipping rates, or you can arrange for your own return shipping.

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

Please note: This product ships signature required.

Specifications

49cm - Sand

Mfg PartNum: 100-5004-149

52cm - Sand

Mfg PartNum: 100-5004-152

54cm - Sand

Mfg PartNum: 100-5004-154

56cm - Sand

Mfg PartNum: 100-5004-156

58cm - Sand

Mfg PartNum: 100-5004-158

60cm - Sand

Mfg PartNum: 100-5004-161

49cm - Slate Blue

Mfg PartNum: 100-5004-249

52cm - Slate Blue

Mfg PartNum: 100-5004-250

54cm - Slate Blue

Mfg PartNum: 100-5004-254

56cm - Slate Blue

Mfg PartNum: 100-5004-256

58cm - Slate Blue

Mfg PartNum: 100-5004-258

60cm - Slate Blue

Mfg PartNum: 100-5004-260

49cm - Terracotta

Mfg PartNum: 100-5004-349

52cm - Terracotta

Mfg PartNum: 100-5004-352

54cm - Terracotta

Mfg PartNum: 100-5004-354

56cm - Terracotta

Mfg PartNum: 100-5004-356

58cm - Terracotta

Mfg PartNum: 100-5004-358

60cm - Terracotta

Mfg PartNum: 100-5004-360
