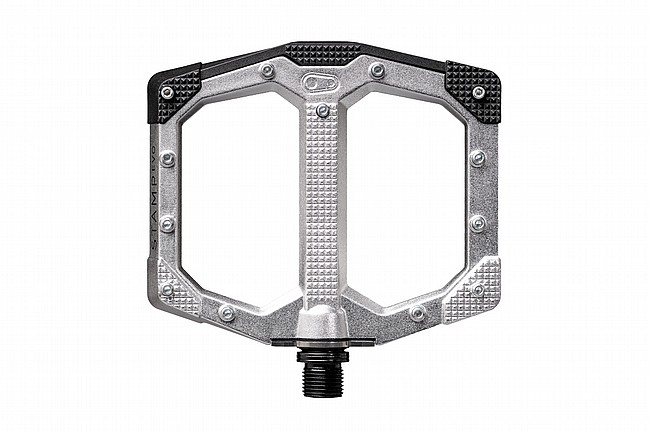

Crank Bros Stamp EVO Flat Pedal

Description

Greater Stability, Less Fatigue & Improved Efficiency

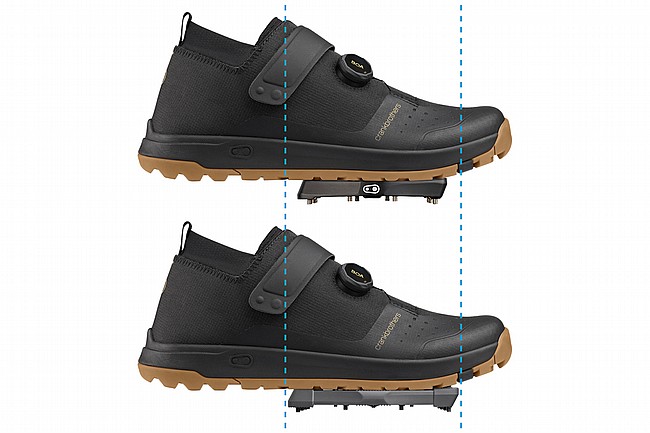

The Crank Bros Stamp EVO is 20% longer than the Stamp 7 pedal, enhancing support, stability, and comfort for all your flat pedal riding needs.

Because climbing is part of every ride, the Stamp EVO is engineered to get more out of every pedal stroke, helping you ride longer and stronger. The size-specific platform improves foot placement, while a thin, concave profile and 13 adjustable pins per side ensure secure grip.

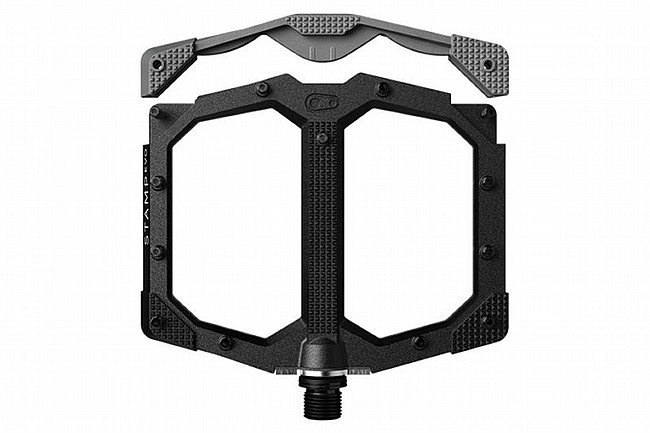

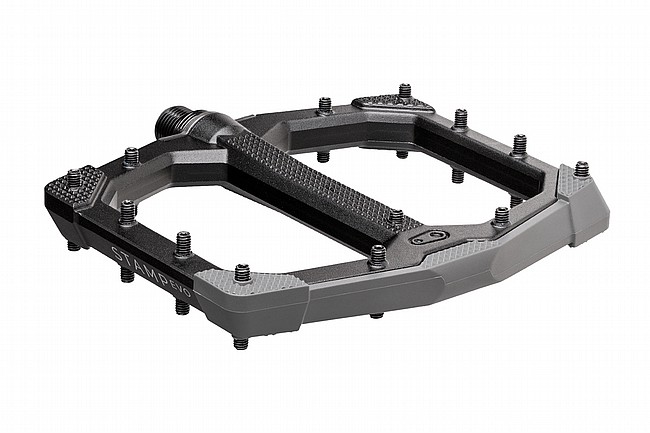

A two-material construction design focuses on durability in the aluminum body, while the replaceable composite bashguards help deflect rock strikes and minimize pedal hang-ups. Built with a chromoly steel spindle and IGUS internals, available in two sizes to Match your shoe size, the Stamp EVO is ready to rip.

Features:

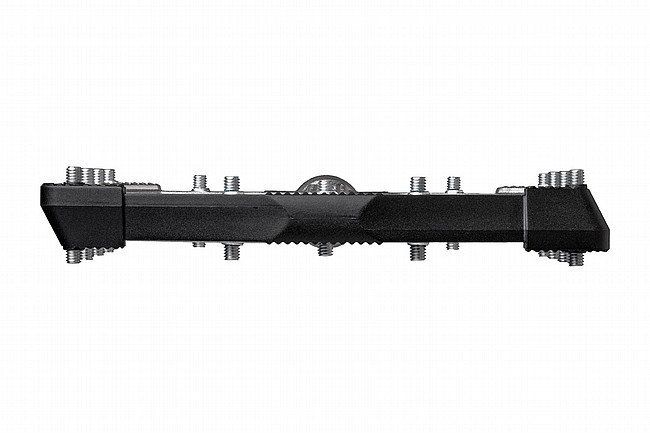

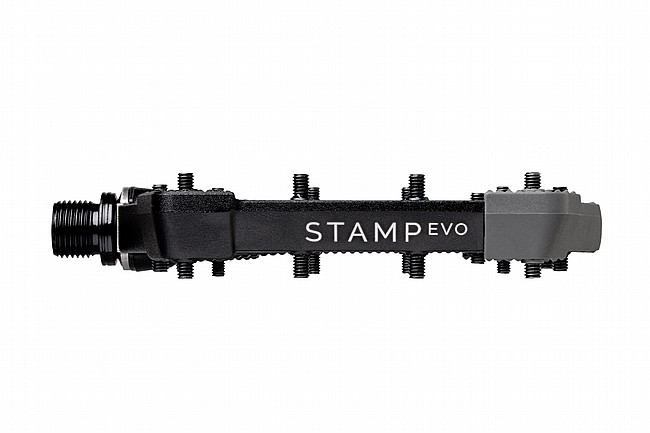

• Optimal surface area: Minimal profile 11mm–15.5mm thin.
• Concave platform: 2.25mm per side for a secure foothold.

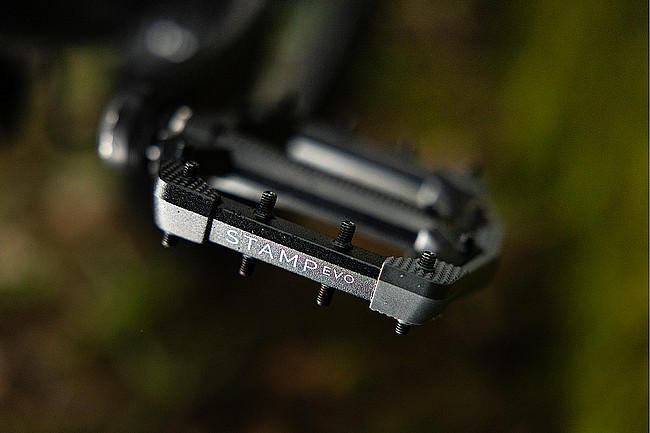

• Grip: 13 adjustable pins per side.
• Bearings: Premium bearings and seal system.

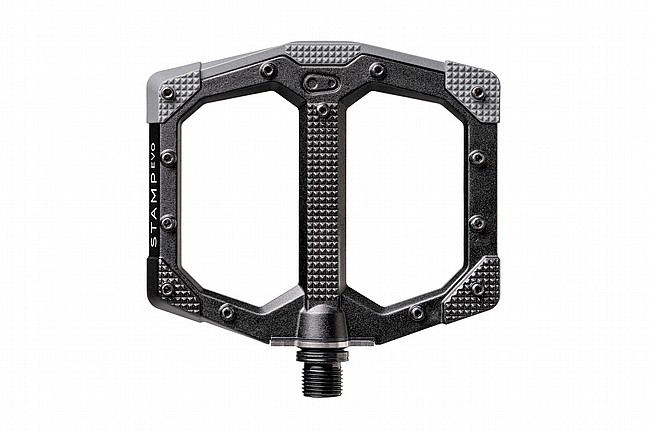

• Stamp EVO Small: Recommended for shoe sizes 5–10 (US) / 37–43.5 (EU).

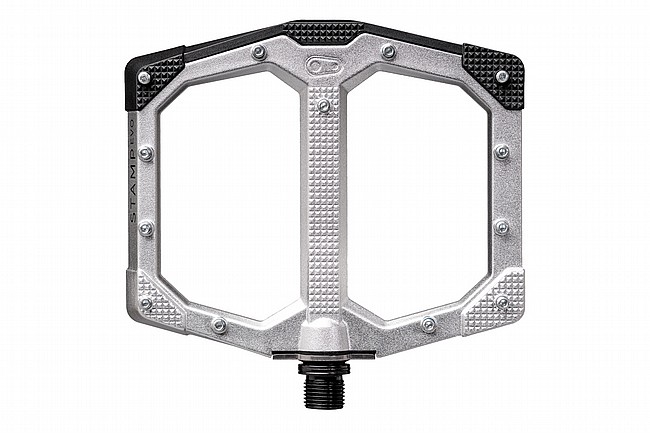

• Stamp EVO Large: Recommended for shoe sizes 10–15 (US) / 43.5–49 (EU).
• Included: Extra pin kit and bashguards.
• Serviceable: Pedal refresh kit available.

Specs:

• Body material: Forged 6061-T6 aluminum and reinforced nylon composite bashguard

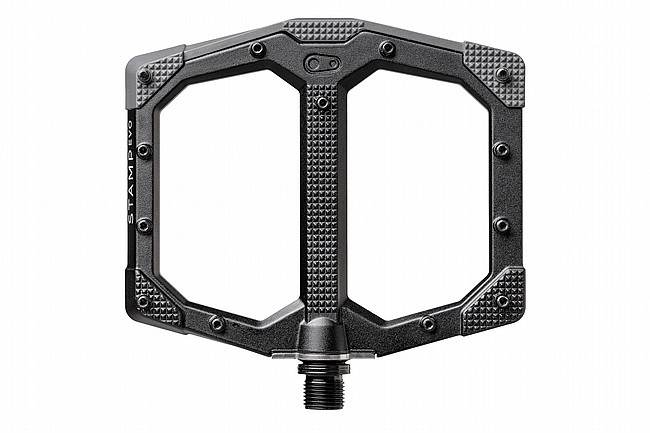

• Footprint: L - 114mm x 133mm / S - 103mm Wide x 117mm Long
• Traction pins: 13 adjustable per side
• Pin length: 8mm, 10mm, 23mm
• Inner bearing type: Igus LL-glide bearing
• Outer bearing type: Igus LL-glide bearing
• Seal system: Premium V-Ring
• Spindle material: Forged SCM 435 chromoly steel
• Max rider weight: No restriction
• Weight: L - 464g / S - 418g per pair
• Warranty: 5 years

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
