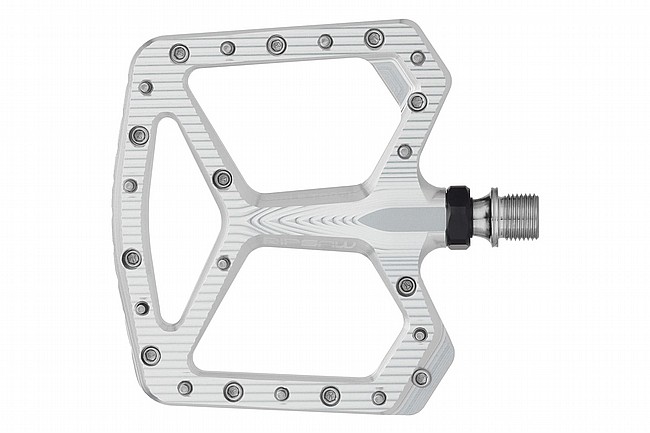

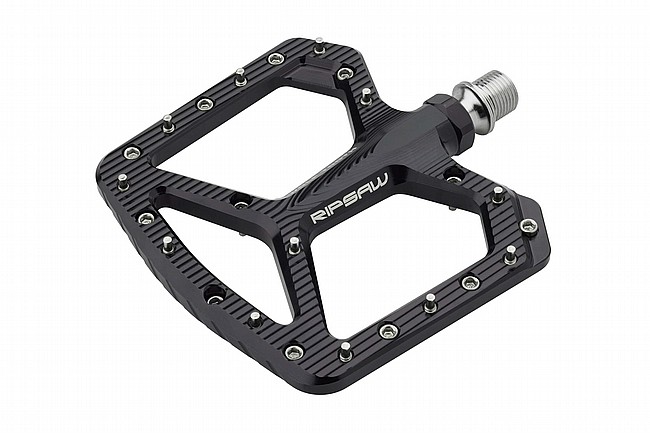

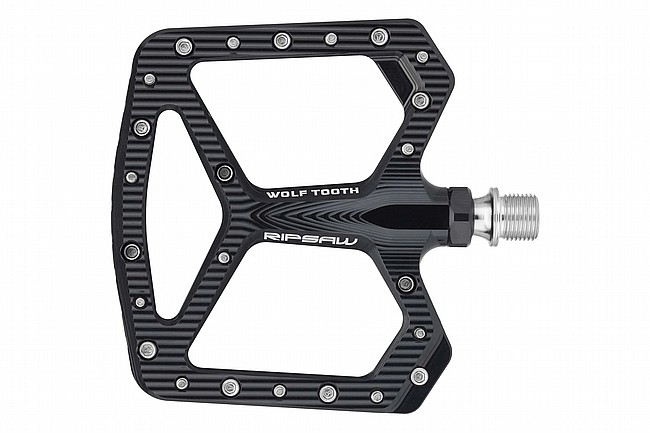

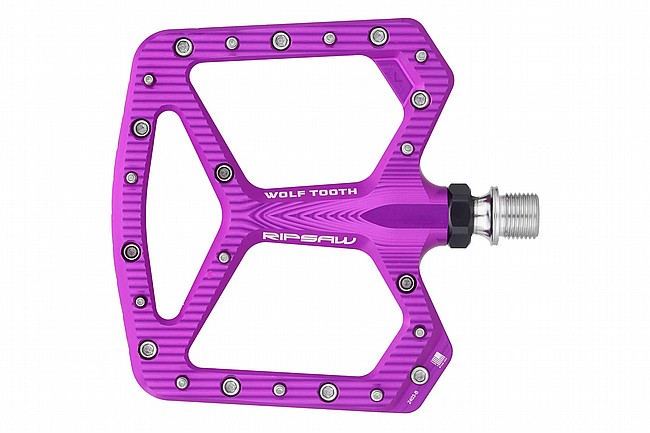

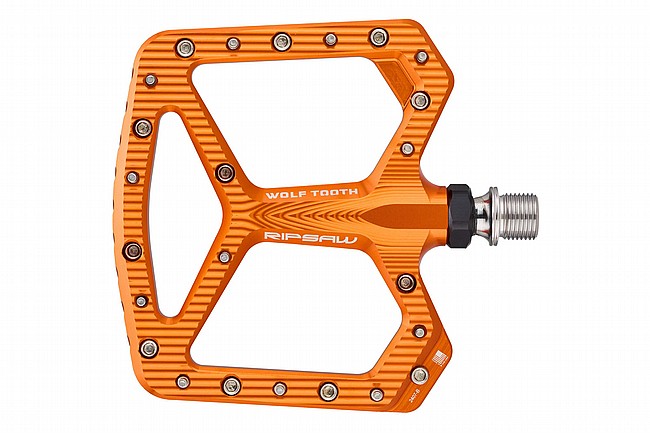

Wolf Tooth Components Ripsaw Aluminum Pedals

Description

Convex, Thin, Maximum Versatility

Wolf Tooth Ripsaw Pedals feature a slim, lightweight design with a slight convex profile. The large, asymmetric platform provides strong foot support for all-mountain riding, while the thin profile is just 7mm thick at the leading edge. Inside the pedal are three fully sealed cartridge bearings, a stainless steel axle, an igus bushing, and a custom radial seal to protect internal components against trail debris.

Ripsaw pedals are 12.5mm thick in the center and just 7mm thick in the front and rear edges. This profile is supportive and comfortable for all riders, while performing exceptionally well for riders who prefer pedaling with a mid-foot position or for shoes that do not have much structure or support.

Each side of the pedal has 12 stainless steel rear-loading 4.5mm pins for loads of traction. An additional six 4.5mm pins ship with the pedal. Shorter 3mm pins are available as replacement parts to customize the convexity of the pedal; by installing shorter pins on the edges, the convex profile is emphasized.

The slight convex profile of the pedal body is tallest at the pedal spindle. The shape then tapers toward each edge from there. This profile aligns perfectly with the arch of your foot and provides a strong platform for power transfer.

Each Ripsaw Aluminum Pedal body begins as a billet of raw aluminum. After 37 minutes in the Wolf Tooth CNC mills, the result is a beautifully crafted pedal body that is ready for anodizing and assembly. If you're a nerd for machining, you'll appreciate the intricate gradients and machine paths.

Features:

• One size: 118mm long x 102mm wide.
• Twelve stainless steel, rear-loading grip pins on each side.
• Six extra 4.5mm grip pins included.
• Replacement parts and service guides available via Wolf Tooth Right to Repair.
• Five-year warranty.
• Exceeds all ISO safety standards.
• Machined and assembled at Wolf Tooth in Minnesota, USA.
• Weight: 380g
• Pin Height: 4.5mm
• Material: Pedal Body: 6061-T6 Aluminum; Axle: 17-4 PH Stainless Steel; Pins: 304 Stainless Steel
