Product Images

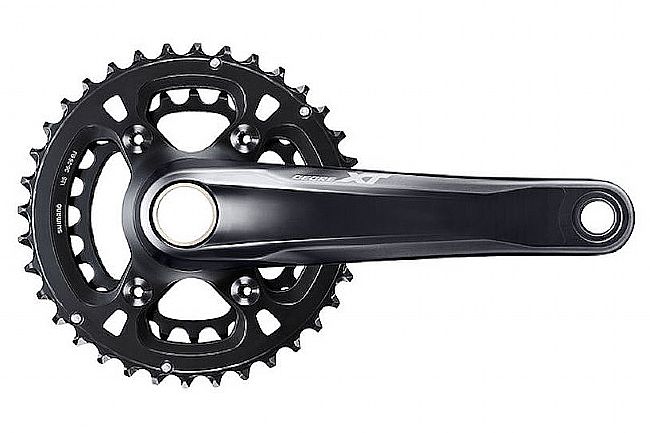

Shimano Deore XT FC-M8120-B2 Crankset 165mm
Click Here for Larger Image

Shimano Deore XT FC-M8120-B2 Crankset

Pricing and Order Section

Mfg PartNum:
MSRP: $232.99
That's off
In Stock
Ships Free!
Earn $18.64 in VIP credit. Click to Learn More.
This size is not eligible for VIP points
Price matches are is not eligible for VIP points


Shimano Deore XT-M8120

The Shimano Deore XT FC-M8120-B2 crank features entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 178mm Q-factor.

The Deore XT is designed for the rider who isn't afraid of aggressive trail riding, yet requires a rigid and lightweight design. The hollow forged crank maximizes power transfer while allowing you to save on added weight. Easily tunable and exchangeable with a single and double chainring, the Deore XT offers phenomenal performance without breaking the bank.

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

The product weight specified is an approximate weight based on the manufacturer's specifications (if available) or our measurement of one or two examples. For most products, the weight will typically vary by 5% to 10%.


Weight: 662 g

Chainline: 51.8 mm

Chainring Sizes: 36-26T

BB Compatibilty: Outboard

Compatible chain: HG 12-speed

Crank Arm Length: 165 mm, 170 mm, 175 mm, 180 mm

Crank fixing bolt included: Yes

Gear arms: 4 arm

Chain Guard: Without chain/bash guard

P.C.D.: Direct

Speeds: 12 (Front Double)

BB Shell Width: 68mm, 73mm

Q Factor: 178 mm
