Pinarello 2026 XC GX AXS Transmission MTN Bike

Description

They're Back!

The 2026 Pinarello XC GX AXS Transmission is a true speed machine, delivering lightness paired with exceptional drive and handling capabilities to excel on the steepest climbs and most technical descents. Pinarello's MTB platform was developed in collaboration with sponsored riders Tom Pidcock and Pauline Ferrand-Prévot, who would both ride them to World Championships in 2023 and Olympic Gold Medals in 2024. What will you accomplish with yours?

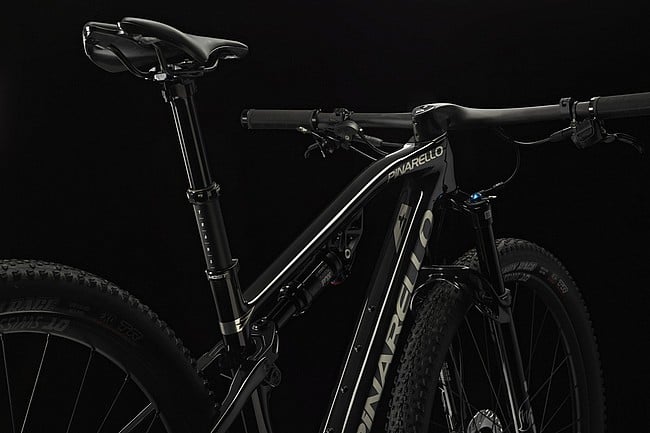

The custom designed, fully integrated cockpit saves weight and offers increased handling precision compared to a two-piece alternative. Fully integrated cable routing is also incorporated, as is a specific headset bearing which features an internal stopper to prevent the handlebar from over-rotating.

The rear triangle utilizes a patented asymmetric design with the left-hand side being reinforced, allowing the bike to counterbalance the higher forces being applied on the opposite side of the drivetrain. This results in more balanced energy transfer, improved speed and traction. Asymmetry has also been maximized in other areas of the frame, with the chain and seat stays pushing this concept to the next level in order to withstand the powerful accelerations which are delivered in elite cross-country races.

Speed-Tuned Suspension

This frame delivers extreme stiffness in the rear triangle and bottom bracket, thanks to an oversized bearing and pivot point for the rear triangle. Having just three pivot points on the rear triangle typically inhibits rear wheel travel, but the bike's unique geometry and integration of flex stays combine to enable travel in a more direct manner. These innovations also save weight, improve stiffness, and deliver an improved connection between rider and rear wheel. The rear suspension kinematics take the integration of flex stays into account to maximize energy transfer while pedaling, delivering optimal compression/rebound on technical descents, and enabling maximum rider control.

Friction at each pivot point has also been minimized by utilizing a mixed bearings/bushing system. Bushings have been incorporated as they are durable enough to absorb the high impact and low rotational forces placed upon them, whereas bearings have been integrated where the opposite forces apply (low impact/high rotation). This results in reduced energy dispersion, increased reactivity of the rear end, and increased durability of the system.

Features:

• Unique Bottom Bracket Area
• Flex Stays
• Adjustable Travel
• Asymmetric design
• One-piece integrated bar/stem
• SRAM GX Eagle Transmission drivetrain
• Shimano XTR Braking
• Fox 32 Fork, Float SL Shock, and Transfer SL Dropper

Specs:

• Frame: TORAY T900 UD Carbon Fiber
• Front Suspension: FOX 32 Performance Elite SC 100mm
• Rear Suspension: FOX Float SL Performance Elite 190x45
• Crankset: SRAM GX Eagle AXS Transmission, 32t
• Rear Derailleur: SRAM GX Eagle AXS Transmission
• Cassette: SRAM GX Eagle AXS Transmission, 10-52t
• Chain: SRAM GX Eagle AXS T-Type
• Bottom Bracket: SRAM GX Eagle AXS
• Brakes: Shimano Deore XT
• Integrated Handlebar: Talon Ultra XC
• Saddle: Lynx 2.0 XC
• Dropper Post: FOX Transfer SL Performance Elite D30.9mm Drop 100mm
• Tires: Maxxis Rekon Race 29x2.25 EXO TR 120TPI
• Wheelset: DT XR 1700 Spline DB
