Pinarello 2027 Dogma F Team Q36.5 Limited Frameset

Description

Where Dreams Meet Precision

Here for the biggest race of the year, the limited edition Pinarello-Q36.5 Pro Cycling Team Tour de France Dogma F frameset is the same one as those set to be raced by Tom Pidcock and the team on the cycling's biggest stage.

Pinarello have always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion among designers and the Pinarello Dogma F achieves the perfect blend of the two.

Features:

• Carbon M40X: A new carbon fiber layup with an exceptional tensile module, achieving the next level of lateral stiffness performance. Tested on X-Light models and Ineos Grenadiers team bikes.
• Downtube: Completely redesigned with reduced thickness to improve frontal aerodynamic performance and reduce aero drag.
• Aero-Keel BB: Trickle-down technology from the Hour Record. The downtube is rotated by 3.5° to create a keel shape that improves aerodynamic performance of the BB area by 1.2%.

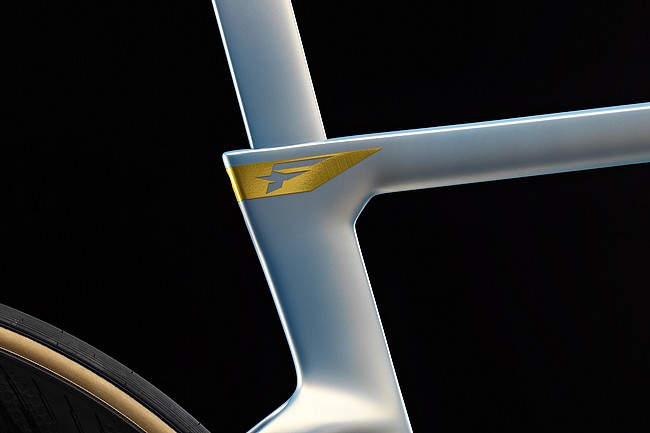

• Top Tube: The head tube nose shape evolves again, reducing the volume and width of the nose area by 8mm with a more streamlined design for improved frontal aero penetration.

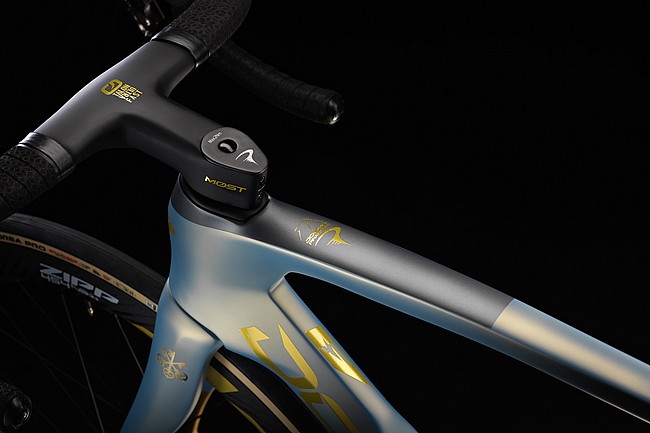

• Headset: An innovative elliptical steering tube and new headset with differentiated bearing diameters — wider at the bottom and narrower at the top — enabling the reduced headtube width.
• Thru Axles: New shorter thru axles with the fork bolt integrated into the carbon, eliminating the external hole. The same integration has been applied to the frame with the rear derailleur dropout, improving both design and aerodynamics.
• Onda Fork: Slimmer fork design with a 47mm rake improves aerodynamics and handling, developed with pro rider feedback for improved speed on descents.
• Integrated Seatpost Clamp: Reduced in size and fully integrated inside the frame seat tube, reducing weight, improving design, and limiting the accumulation of dust and sweat.

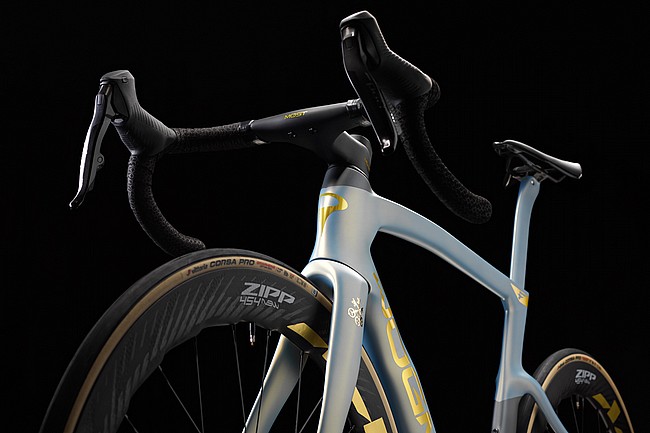

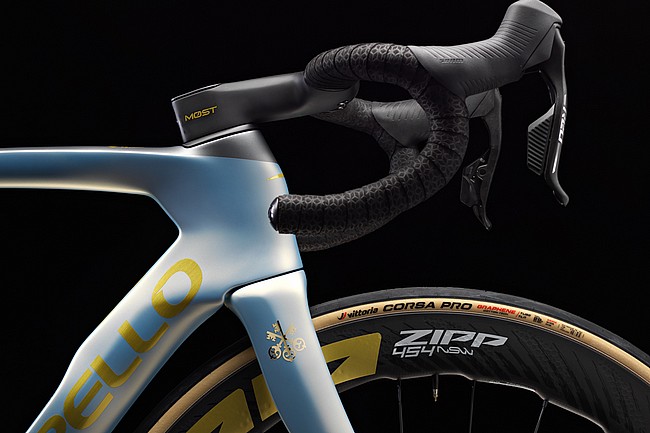

• Talon Fast: The new Talon Ultra Fast integrated cockpit is lighter and more aero, designed with a natural twisted lever position for a safer, more aerodynamic riding position.

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
