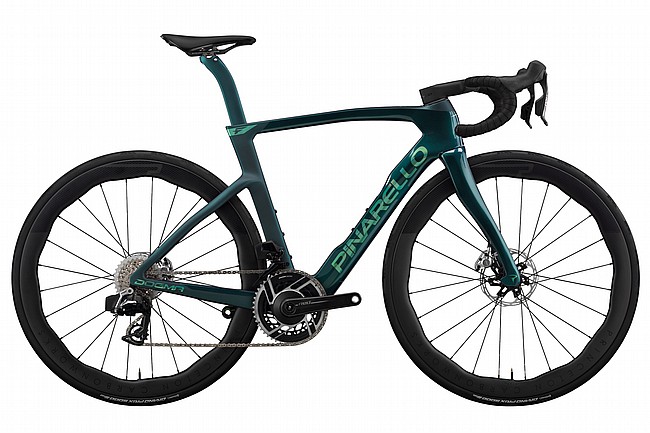

Pinarello 2027 Dogma F Super Record Road Bike

Description

Design the Exceptional

Pinarello have always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion among designers and the 2027 Pinarello Dogma F Super Record achieves the perfect blend of the two.

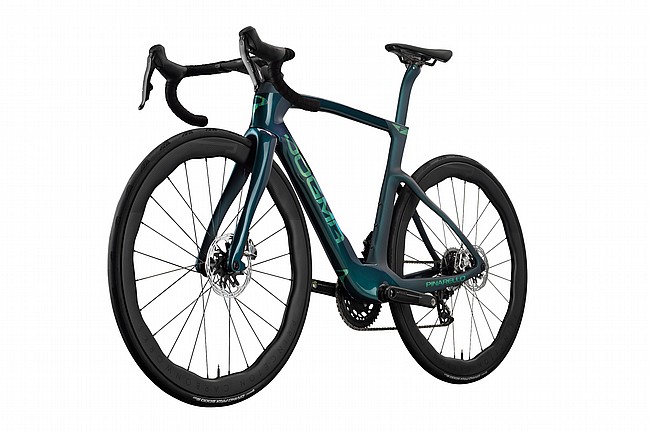

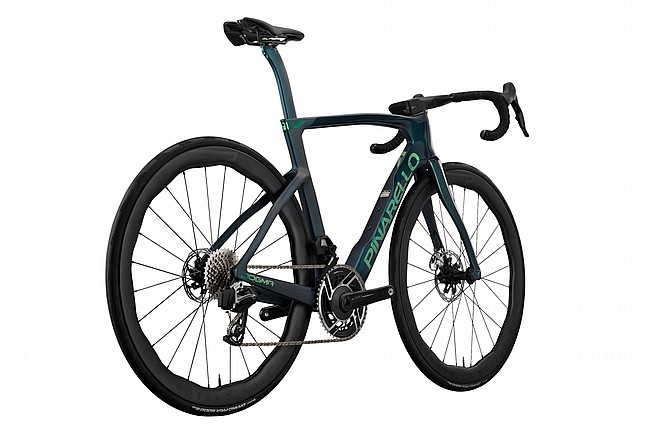

Please note: Images are representative of frame colors only. Exact build specs are subject to change based on availability.

Features:

• Carbon M40X: A new carbon fiber layup with an exceptional tensile module, achieving the next level of lateral stiffness performance. Tested on X-Light models and Ineos Grenadiers team bikes.
• Downtube: Completely redesigned with reduced thickness to improve frontal aerodynamic performance and reduce aero drag.
• Aero-Keel BB: Trickle-down technology from the Hour Record. The downtube is rotated by 3.5° to create a keel shape that improves aerodynamic performance of the BB area by 1.2%.
• Top Tube: The head tube nose shape evolves again, reducing the volume and width of the nose area by 8mm with a more streamlined design for improved frontal aero penetration.
• Headset: An innovative elliptical steering tube and new headset with differentiated bearing diameters — wider at the bottom and narrower at the top — enabling the reduced headtube width.
• Thru Axles: New shorter thru axles with the fork bolt integrated into the carbon, eliminating the external hole. The same integration has been applied to the frame with the rear derailleur dropout, improving both design and aerodynamics.
• Onda Fork: Slimmer fork design with a 47mm rake improves aerodynamics and handling, developed with pro rider feedback for improved speed on descents.
• Integrated Seatpost Clamp: Reduced in size and fully integrated inside the frame seat tube, reducing weight, improving design, and limiting the accumulation of dust and sweat.
• Talon Fast: The new Talon Ultra Fast integrated cockpit is lighter and more aero, designed with a natural twisted lever position for a safer, more aerodynamic riding position.

Specs:

• Frame: TorayCa M40X, TiCR™ cable routing, Italian BB
• Fork: New eTiCR Onda Fork with ForkFlap™, 1.5" upper and lower steerer
• Crankset and Chainrings: Campagnolo Super Record 13s
• Front Derailleur: Campagnolo Super Record 13s
• Rear Derailleur: Campagnolo Super Record 13s
• Cassette: Campagnolo Super Record
• Bottom Bracket: Campagnolo QCK-Tech
• Brakes: Campagnolo Super Record, 160mm rotor
• Integrated Handlebar: MOST Talon Ultra Fast
• Bar Tape: MOST bar tape
• Saddle: MOST Lynx Ultrafast Superflow L Carbon, 145mm
• Seatpost: Pinarello aero seatpost with 3D printed titanium top seatclamp and bolts
• Tires: Continental Grand Prix 5000S TR 28-622
• Wheelset: Princeton Peak 4550 DB
• Axles: MOST Ultra Light Custom Axle 12x100 and 12x142, tool-free removal
