Folding Work Stands for Bikes up to 80 lbs

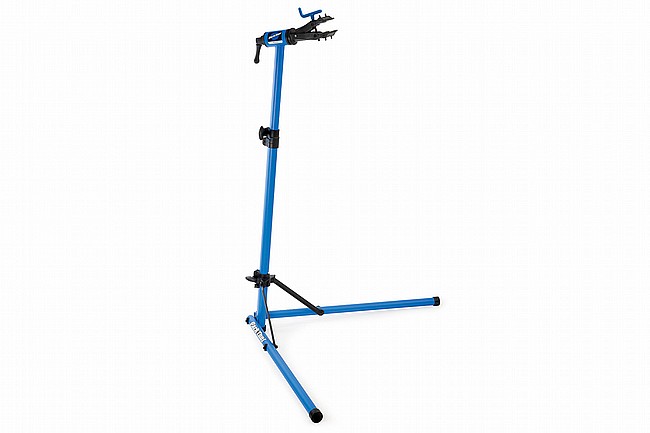

The PCS-9.3 is a basic folding bicycle work stand designed and built for the home mechanic — a stable way to hold nearly any bike off the ground for adjustments, cleaning, and repair. Features 18" (460 mm) of height adjustment and 360 degrees of clamp rotation, positioning all parts of the bike within reach for any mechanic whether seated or standing.

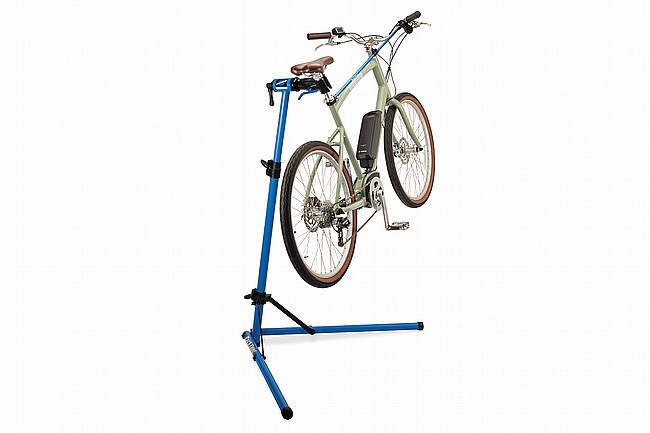

The stand's all-steel construction with teardrop-shaped tubing ensures maximum rigidity and stability, with a locking support yoke and upgraded internals for extra dependability. The PCS-9.3 is able to hold up to 80 lbs. (36 kg), which allows for compatibility with virtually all two-wheeled pedal-driven bicycles, including fat bikes and most e-bikes.*

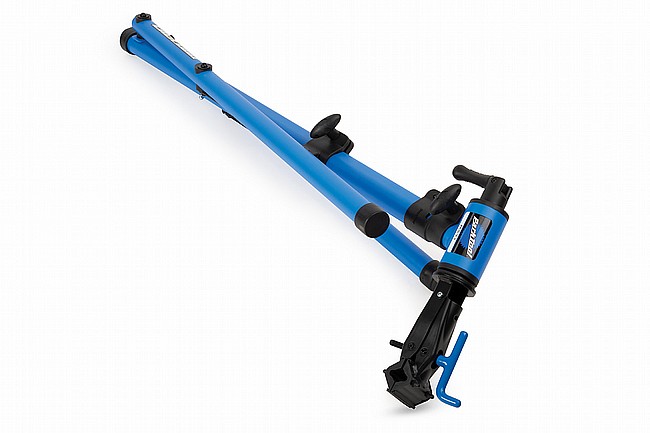

The PCS-9.3 quickly folds down for storage and transport with a smooth-operating leg support system that pulls both legs up in one simple motion. The PCS-9.3 is the perfect way to upgrade your home shop.

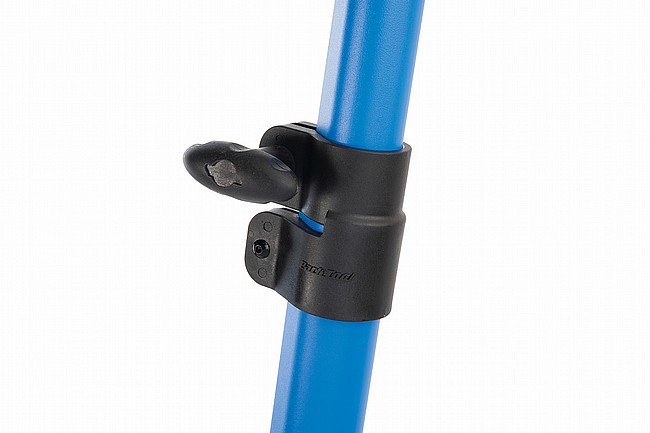

The main upgrade found on the PCS-9.3 (as opposed to the PCS-9.2) is the addition of a spring button that prevents the legs from folding once the stand is fully upright, even if the adjustment knob is not properly tightened. The clamp and jaw covers have also been revised to allow for more secure engagement on tubes as small as 7/8", which would include most dropper posts. Several internal parts are also upgraded to be stronger and allow smoother operation.

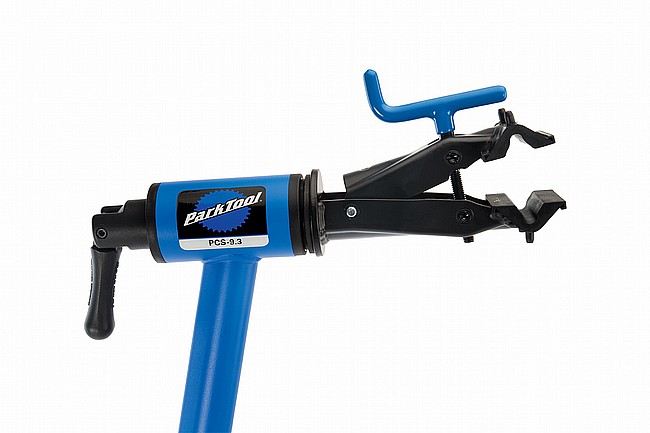

- Fully adjustable clamp fits 7/8" to 3" (22 mm–76 mm) diameter tubes and seat posts of any shape and material, including aero posts and dropper posts
- Narrow clamping jaws (2.7"/70 mm) fit into tight areas or on short seat posts
- Durable textured powder coat finish
- Maximum weight capacity: 80 lbs. (36 kg)
- Height adjustable from 39" to 57" (990 mm–1450 mm)
- Base when open forms a triangle of 36" x 36" x 48" (920 mm x 920 mm x 1210 mm)
- Folds down to 44" x 14.5" (1140 mm x 370 mm)
- Weight: 16 lbs. (7.2 kg)
- #2848A quick-release collar with accessory pods required for use of PTH-1 Paper Towel Holder or 106 Work Tray
- *NOTE: The maximum weight capacity of the PCS-9.3 assumes the weight is centered below the clamp and between the legs.
Returns: This product is overweight and/or oversize and does not qualify for our fixed rate return shipping label. If you need to return this item, we can offer a return shipping label at our discounted shipping rates, or you can arrange for your own return shipping.
B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
Mfg PartNum: PCS-9.3
Tool Type: Floor Repair Stand
I'm really happy to have this tool and can't believe I waited so long to get one. This repair stand makes bike maintenance so much more ergonomic and safe. I became convinced I needed this tool during a ride on the White Rim Trail in Canyon Lands National Park. My friend Steve, brought a repair stand along and we (ten of us) all used it to lube and tune during the ride. I became hooked on the utility of repair stands.
Pros: The Park Tool stand is stable (yeah!), has really good adjustablity, folds up into a reasonable size and is portable. The quality of the stand is impeccable as with all Park tools. The price discount along with Gold Points from BTD was awesome and made this stand affordable to a frugal biker.
Cons: The clamping mechanism can be challenging to use while holding your bike and tightening the clamp. Make sure to have your force vectors balanced (ergonomically) so you don't twist your back or shoulder when clamping to a seat post. Also, the stand is pretty heavy which is good and bad. It's good for stability, but bad for your back if moving it around a lot.
I have the old pc-1 repair stand for use in the gargage. This Pcs-9.3 is perfect for use in the house. It folds up nicely to store in a corner of a room. The quality is outstanding. Very happy with the purchase.
This stand is used to service my Road Bike as well as my Mountain Bike. It is sturdy, easy to setup and adjust and is very stable once erected. The component parts are heavy duty and are all well-constructed for strength and durability. I highly recommend this product for at home bike maintenance, and you can't beat the quality for the price.
