Keep Those Hydro Fittings Tight

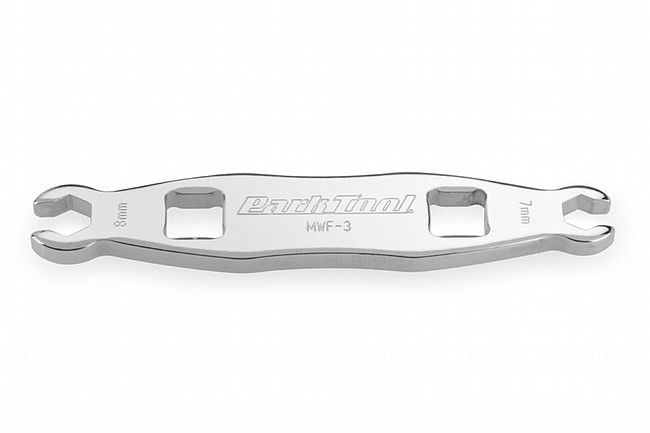

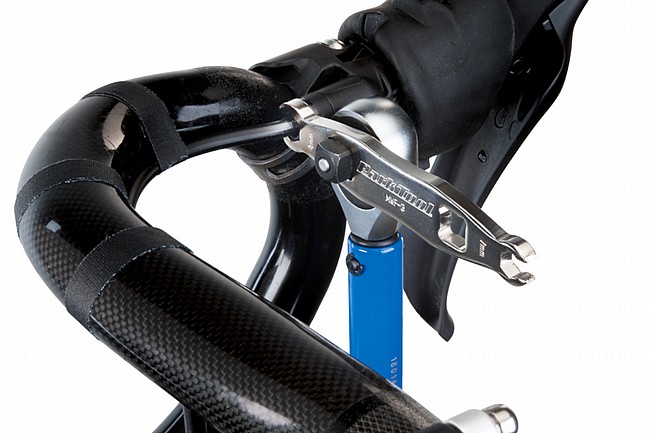

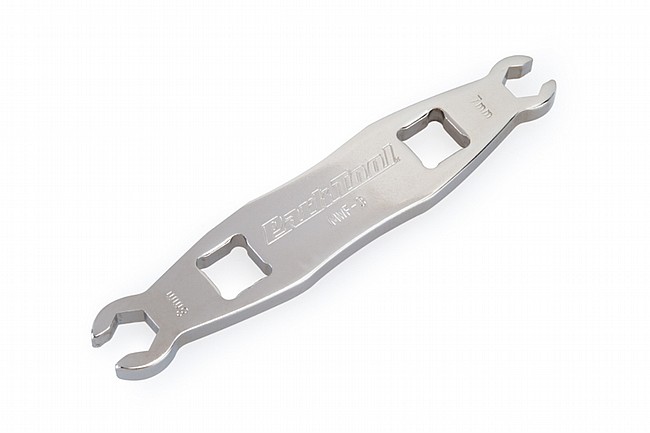

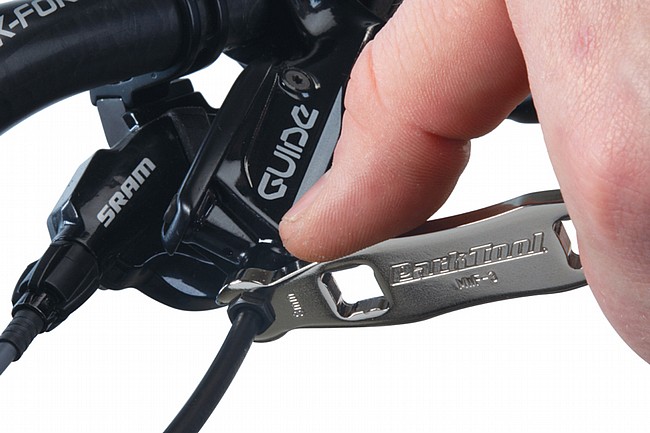

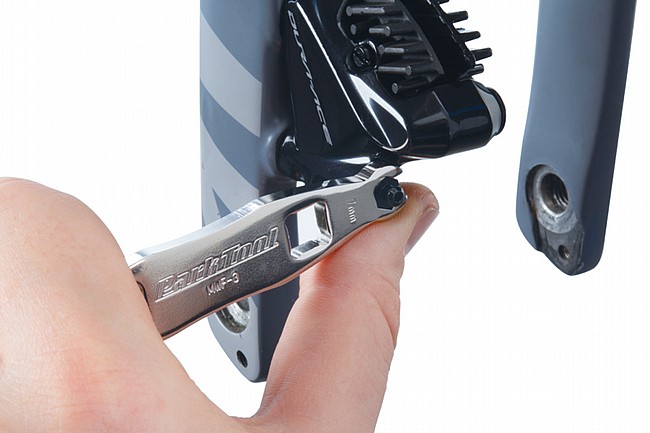

Park Tool's MWF-3 Metric Flare Wrench is a purpose-built wrench designed for compression nuts, nipples and other fittings found on hydraulic brake systems. The five-sided flare wrench head evenly spreads out the force being applied to the wrench, reducing the risk of damage to fasteners and brake hoses. Features a slim, low-profile design to access low-clearance fittings found on hydraulic levers and calipers. Built-in 3/8" fittings allow for use with a torque wrench to achieve proper torque.
Features:
- Double-sided wrench features 7mm and 8mm wrench openings
- Dimensions: 101mm x 19.5mm x 4.5mm
- Weight: 44g

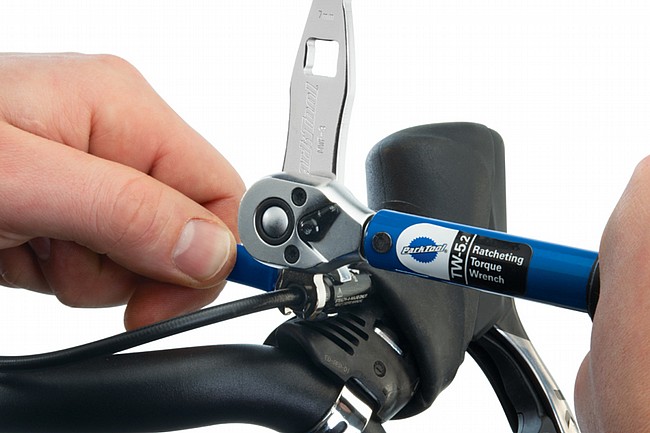

NOTE: When using in conjunction with a torque wrench, the MWF-3 should be installed at a 90° angle from the beam of the wrench.
B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
Specifications
Mfg PartNum: MWF-3 | |
Tool Type: Wrenches (Various) |
Reviews
I use this in the shop for bleeding hydraulic brake systems on bikes. I used to just use a simple spanner and it would intermittently fall down (and sometimes take the hose off...big mess). Even if the spanner worked, it would not easily enable proper torque setting on the (somewhat fragile) nipple connector.
The MWF-3 has both 7mm and 8mm wrenches and both are equipped with a 3/8" socket that you can plug a mini torque wrench into for sealing up worry-free!
I needed to R&R the rear brake caliper, and therefore had to get the right tools. This wrench has the sizes I needed, and is overall a quality tool. I did have to file down the outside of the 7mm side because it was a little too fat to fit between the bleed screw and the body of the caliper. Once that was done it did the job well.
