Chainring Bolt Installation Done Right

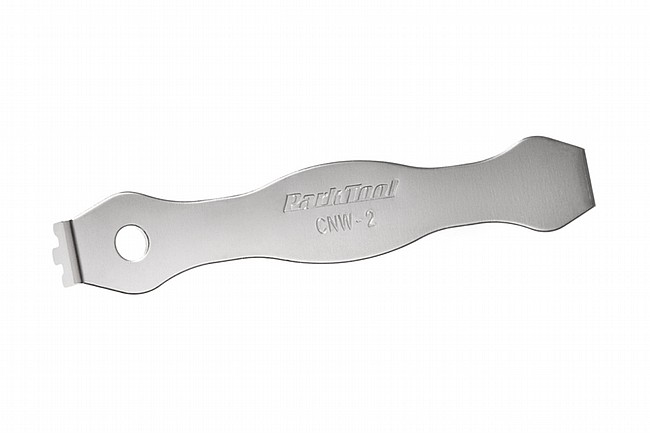

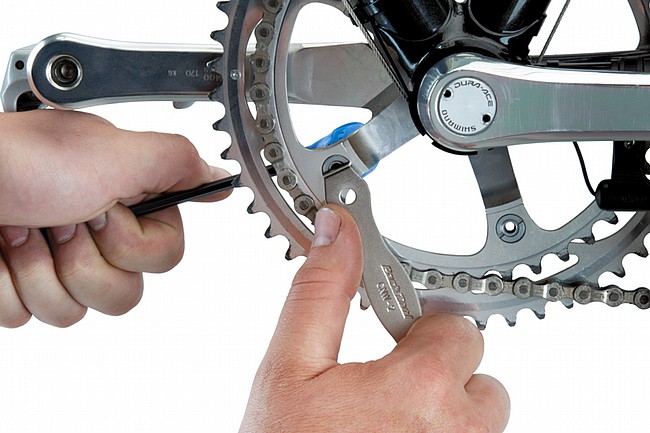

The Park Tool CNW-2 Chainring Nut Wrench makes chainring bolt set installation and removal easy. It securely holds the slotted nut to prevent spinning when tightening or loosening the bolt. Double-ended to fit most slotted-type nuts, including Campagnolo chainring nuts.
Park tool is the industry standard for quality bike tools. Whether you're simply fixing a flat or disassembling your entire bike, Park Tool has the tool for you.
- Compatible with slotted chainring bolts
- Double-ended to fit most slotted-type nuts
- The outer width of both ends of the CNW-2 are nominally 12mm wide
- One end has a two outer tips nominally 2.7mm wide each, and the other end has tips of 3.8mm each
- The blade thickness is nominally 1.35mm
- Weight: 0.7oz
B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
The product weight specified is an approximate weight based on the manufacturer's specifications (if available) or our measurement of one or two examples. For most products, the weight will typically vary by 5% to 10%.
One would think one could find something to hold the nut while trying to loosen the bold on the chain ring. I tried lots of things but couldn't stop the nut from turning until the tool arrived. Then it was easy.
For years, I'd tried every tool I had to stop the chainring nuts from slipping when tightening, but nothing worked. This tool does the job and is cheap. If you don't have one, pick one up before you need it.
