Gravel Crusher

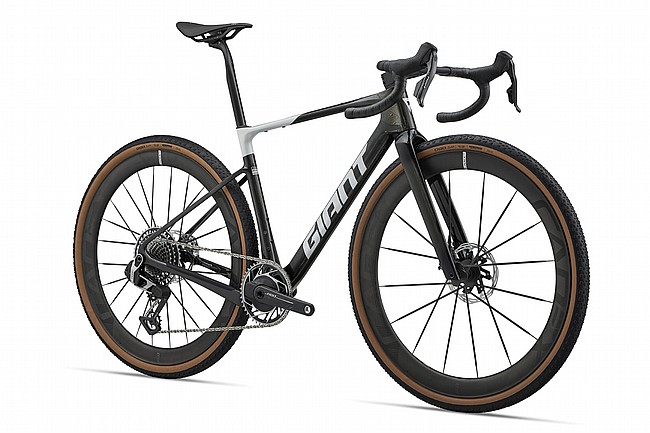

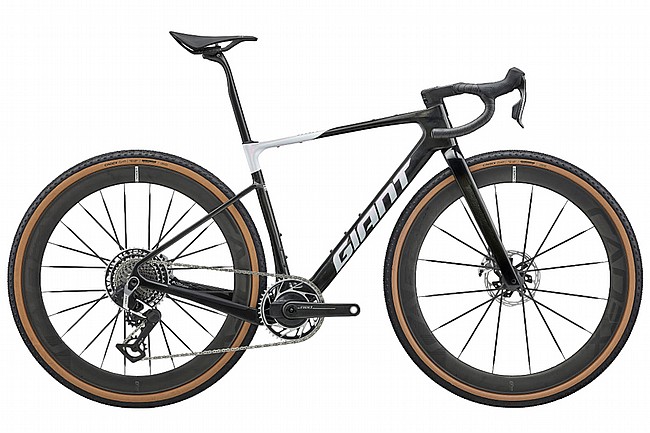

The Giant Revolt Advanced SL 0 is the lightest, fastest gravel race bike they've ever built. Engineered as a system to deliver a competitive edge over long, demanding gravel efforts, the new Revolt Advanced SL combines aero efficiency with smooth, precise handling, helping you hold speed when others fade.
Features:
- Ultralight Efficiency: The new frame and fork are handcrafted using Advanced SL composite, saving 176 g over the previous Revolt Advanced Pro. A new Contact SLR XR Integrated Handlebar, lighter WheelSystem, and CADEX GXR 45mm tires bring total system weight savings to 288 g. The lighter weight and wider tires result in more dynamic handling, faster acceleration, and greater climbing efficiency.
- Aero Speed Over Distance: Aero tube shaping is optimized for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork, and cockpit. New WheelSystems and tires designed as a single aerodynamic unit deliver 18.99 watts of total resistance reduction versus the previous Revolt Advanced Pro, resulting in less fatigue, higher sustainable speed, and measurable time savings.

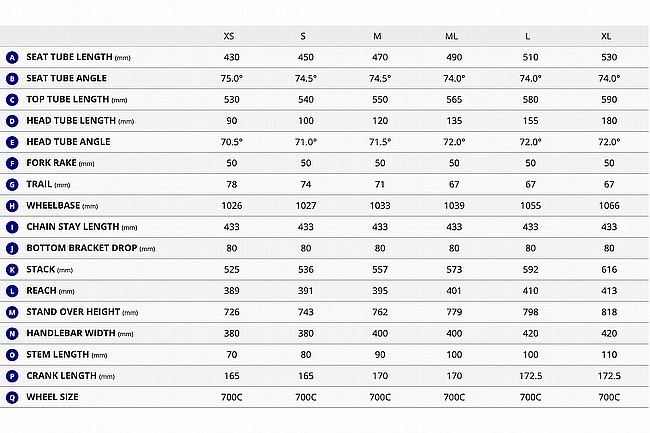

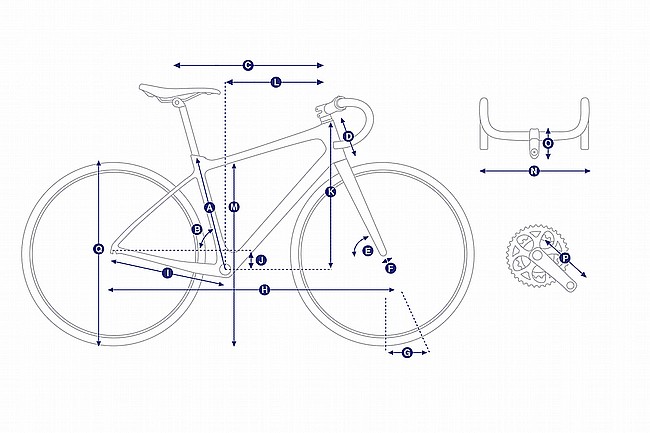

- Race-Tuned Geometry: With a 557mm stack and 395mm reach (size M), a 74.5° seat tube angle, 1,033mm wheelbase, and 433mm chainstays, the Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Optimized for 45mm tires with 53mm maximum clearance, it's purpose-built for modern gravel racing.
Specs:
- Frame: Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout.

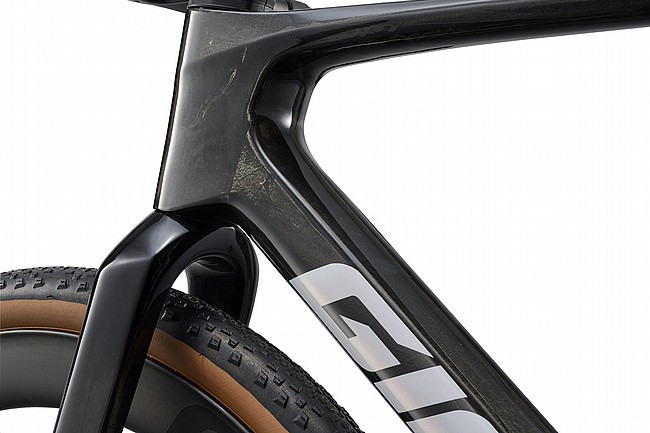

- Fork: Advanced SL-grade composite, full-composite updated OverDrive steerer, 12mm thru-axle, disc.

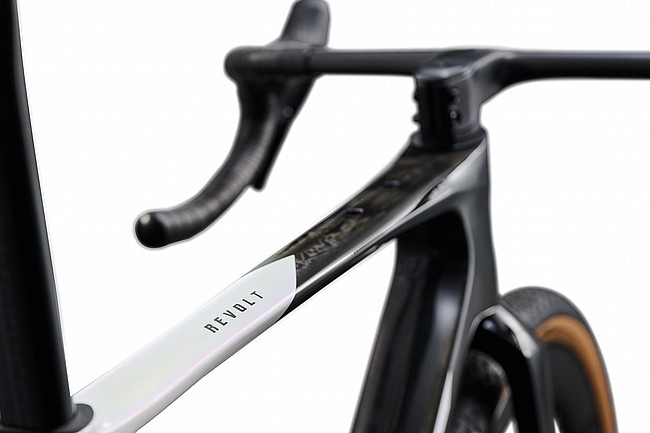

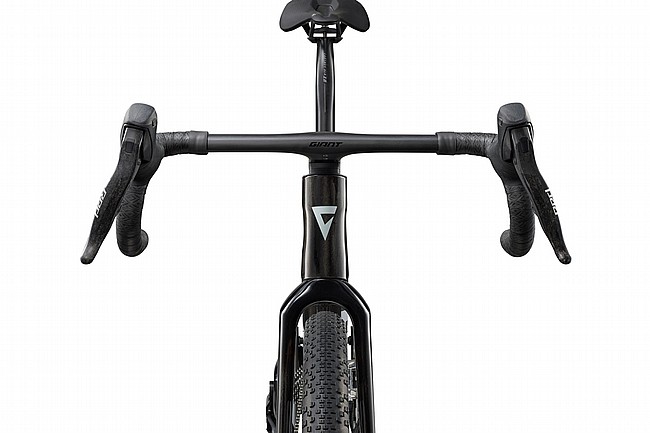

- Handlebar: Giant Contact SLR XR Integrated — XS/S: 420/380mm, M/M/L: 440/400mm, L: 440/420mm, XL: 460/420mm.
- Grips: Stratus Lite 3.0.
- Stem: Giant Contact SLR XR Integrated — XS: 70mm, S: 80mm, M: 90mm, M/L: 100mm, L: 100mm, XL: 110mm.
- Seatpost: Giant Contact SLR XR D-Fuse, composite, 20mm offset.
- Saddle: CADEX Amp.
- Shifters: SRAM RED XPLR AXS E1, 1x13.

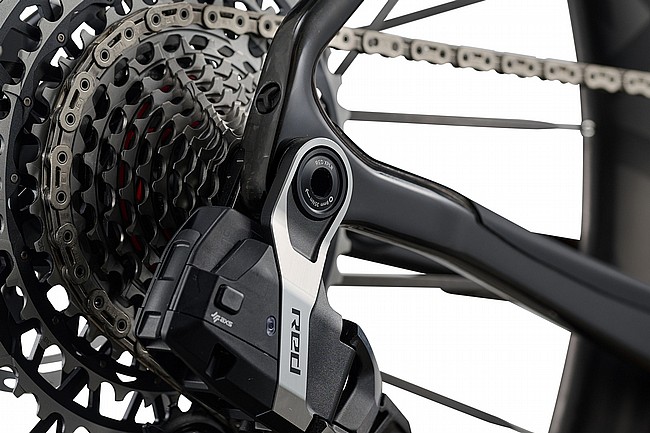

- Rear Derailleur: SRAM RED XPLR AXS E1.
- Brakes: SRAM RED AXS E1 hydraulic, SRAM PaceLine X rotors — F: 160mm, R: 160mm.
- Brake Levers: SRAM RED E1 hydraulic.
- Cassette: SRAM RED E1, 13-speed, 10x46.
- Chain: SRAM RED E1.

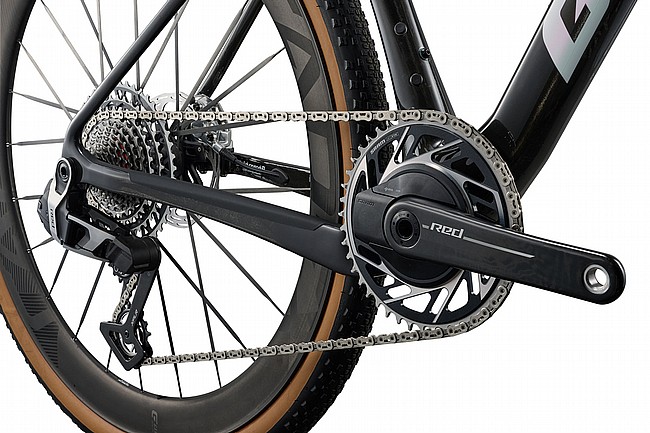

- Crankset: SRAM RED XPLR AXS with power meter, 44t — XS/S: 165mm, M/M/L: 170mm, L/XL: 172.5mm.
- Bottom Bracket: SRAM DUB, press fit.
- Rims: CADEX Max GXR WheelSystem, hookless, carbon, F/R: 50mm.
- Hubs: Front: CADEX R3, Center Lock, one-piece integrated hub and spokes / Rear: CADEX R3-C60, 60-tooth ratchet driver, Center Lock, one-piece integrated hub and spokes.
- Spokes: CADEX Super Aero Carbon Spoke.
- Tires: CADEX GXR, 700x45c, tubeless.
- Max Tire Clearance: 700x53mm.
- Max Chainring Size: 54T.
- Extras: Tubeless prepared, computer mount, chain guide.
