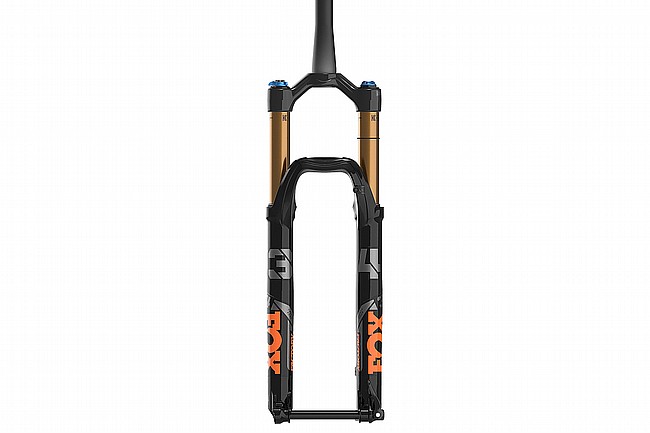

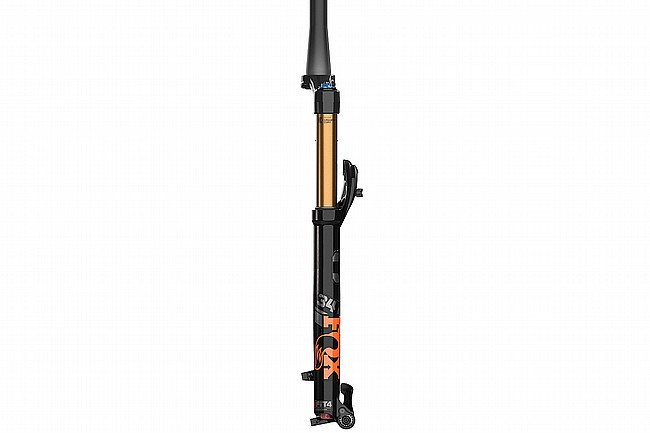

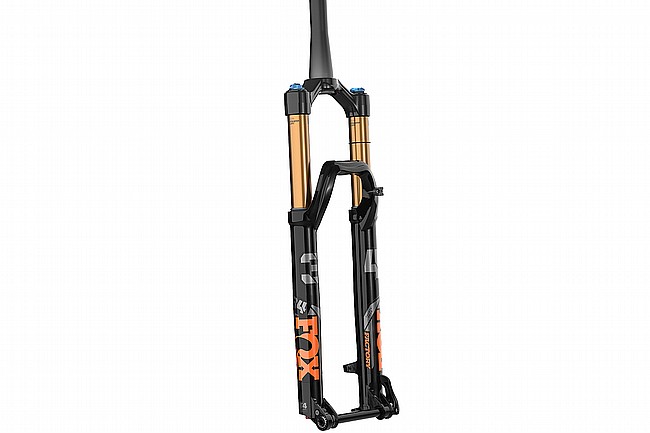

Fox Factory 34 Float 29in Suspension Fork
Fox Factory 34 Float 29in Suspension Fork
Fox Factory 34 Float 29in Suspension Fork
Tap Here for Larger Image
Fox Factory 34 Float 29in Suspension Fork 1
Fox Factory 34 Float 29in Suspension Fork 2
Fox Factory 34 Float 29in Suspension Fork 3

Fox Factory 34 Float 29in Suspension Fork

Pricing and Order Section

Mfg PartNum:
SALE: $819.00
MSRP: $1,019.00
That's 20% off
In Stock
Ships Free!
Earn $16.38 in VIP credit. Click to Learn More.
1638
POINTS
This model is not eligible for VIP points
Price matches are is not eligible for VIP points


Description

The Hard Charging Do It All Trail Fork

Smoother, lighter, more tunable, and more capable than ever before; when it comes to a do-it-all trail fork the Fox Factory 34 is in a class of its own.

Smoother

As a fork compresses, the air volume within the lower legs decreases, increasing air pressure. The more the fork compresses, the more pressure increases. This effect can have the unintended consequence of preventing full travel from being achieved. Fox lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping.

Another benefit of these channels is that lower leg bath oil is circulated to the upper reaches of the lower legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.

Stiffer

Stiffness-to-weight is the ultimate metric for bicycle design. Engineers invest countless hours poring over every ounce of material in an effort to optimize this critical ratio. The all-new 34 pulls out all the stops, shaving every possible gram while making sure not to compromise the stiffness or strength requirements of modern trail riding.

Modern frame designs and geometry trends require modern suspension design solutions. The arch design is designed to pair perfectly with modern trail bikes. Head tube profiles have grown larger and larger, and fork offsets shorter and shorter. The new Fox arch shape takes this need into account by jutting forward to provide ample headtube clearance at full compression. State-of-the-art computer modeling techniques helped them to create an organic lower leg shape that optimizes stiffness with the absolute minimal amount of material.

More Tunable

In its fourth generation, Fox's patented FIT4 closed cartridge system provides three on-the-fly compression damping positions—Open, Medium, and Firm—to adapt to varying trail conditions. Factory Series forks feature an additional 22 clicks of low-speed compression adjust in the Open mode, allowing riders to fine-tune their exact damping preferences.

Returning with the same legendary suppleness and longevity, the EVOL air spring in 34s now has an enlarged negative air spring to assist with mid-stroke support.

Features:

  • Fits 29" (ISO 662)
  • Travel: 120/130/140
  • Rake: 44 / 51
  • Axle: Kabolt 110
  • Rotors: 180 direct Post Mount, Up to 203 compatible
  • Steerer: 1.5 Taper
  • Starting weight: 1738g
  • Genuine Kashima Coat
  • Lower Leg Bypass Channels
  • Lower Leg Arch
  • FIT4 Damper
  • FLOAT EVOL Air Spring

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

Please note: This product ships signature required.

Specifications

Mfg PartNum: 910-21-013
