Built to Go Further

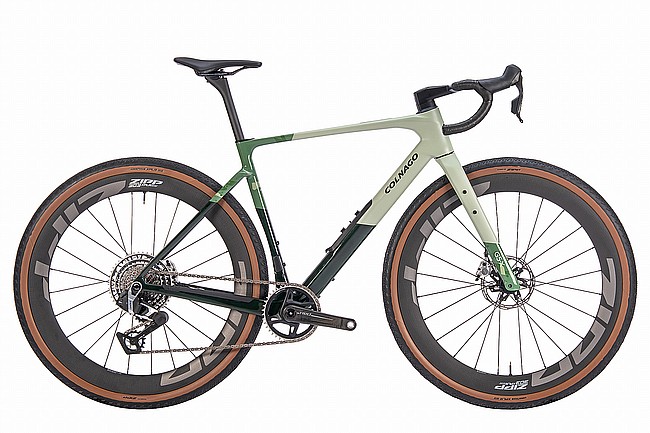

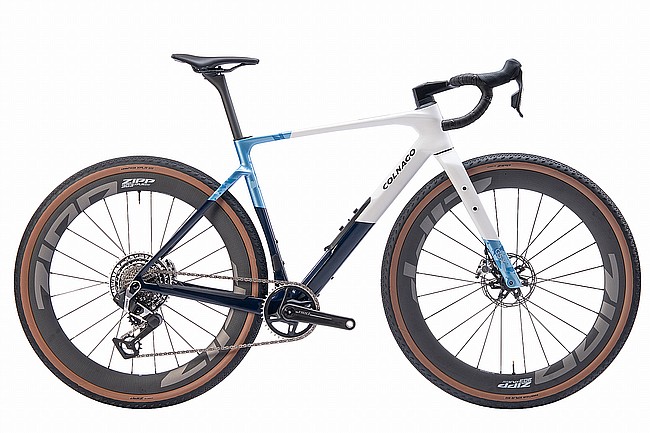

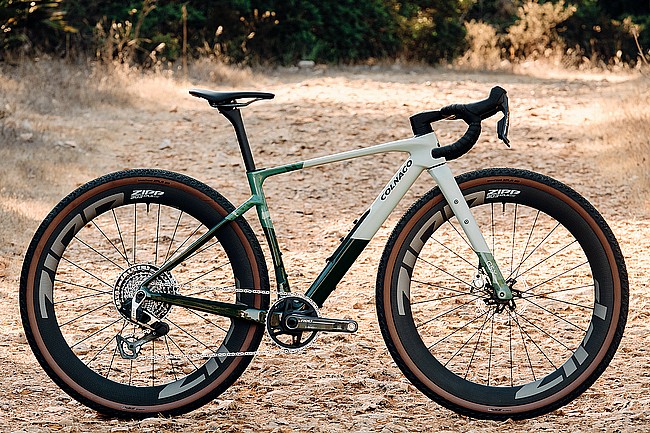

The Colnago G5-X SRAM RED XPLR AXS is their next-generation gravel bike. Rather than an evolution of the G4-X, it's an entirely new platform, developed from a close analysis of how modern gravel riders actually ride and what they demand from their bike. It combines the speed and efficiency to excel on the road with the capability to tackle whatever lies beyond it, whether that's a race, a long day in the saddle, or a bikepacking adventure.

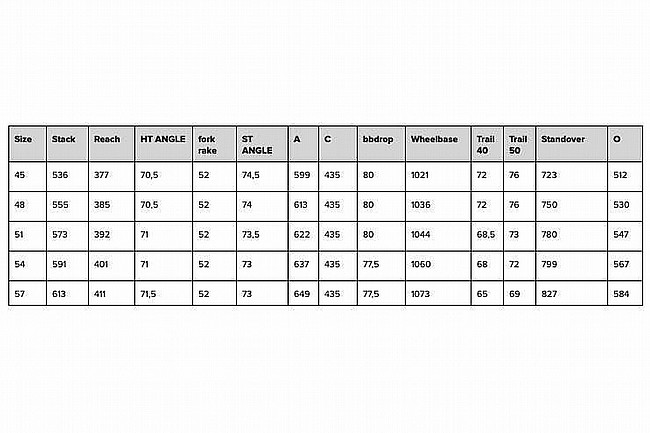

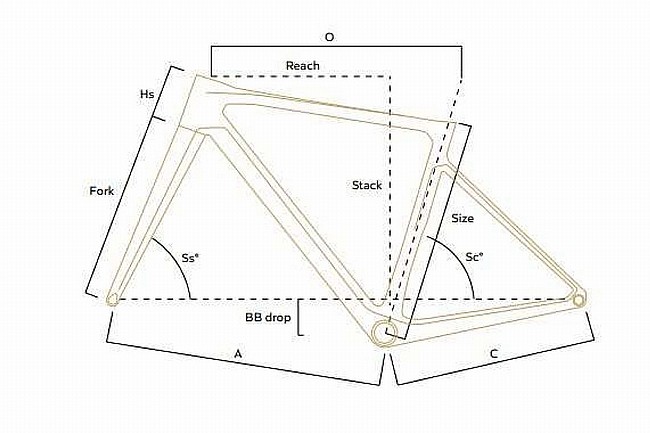

Note: Colnago uses actual seat tube length for their size measurement. Please use the geometry chart to determine the correct size. If you have any questions please feel free to contact us and our Customer Service team will be happy to help you determine your proper size.
Features:
- Tire Clearance: Up to 53mm nominal width (with 6mm of clearance) for maximum grip and comfort on the roughest terrain.
- Revised Geometry: Gravel-specific race geometry for better handling on sketchy descents and rough gravel, particularly at high speeds.
- Internal Frame Storage: Down tube storage for carrying tools and spares, accessed through a removable Colnago bottle cage plate; storage bag and repair kit not included.
- Mounting Points: 6 total, including 2 standard bottle cage mounts, 1 under the down tube, 1 on top of the top tube, and 2 on the fork for bottle or cargo cages.
- FIDLOCK® Compatible: Mounts work with traditional bottle cages or the FIDLOCK® system; 3 FIDLOCK® Twistlock mounts included.
- Round Seatpost: 27.2mm round seatpost, potentially dropper-post compatible for more control on technical descents.
- UDH Compatible: Universal Derailleur Hanger standard on the 12x142mm rear thru-axle.
- Chainring Clearance: 1x up to 50T; 2x compatible with all gravel chainrings, plus road compact and super-compact only.
- Threaded Bottom Bracket: BSA 68mm.
Specs:
- Frame: Monocoque carbon fiber

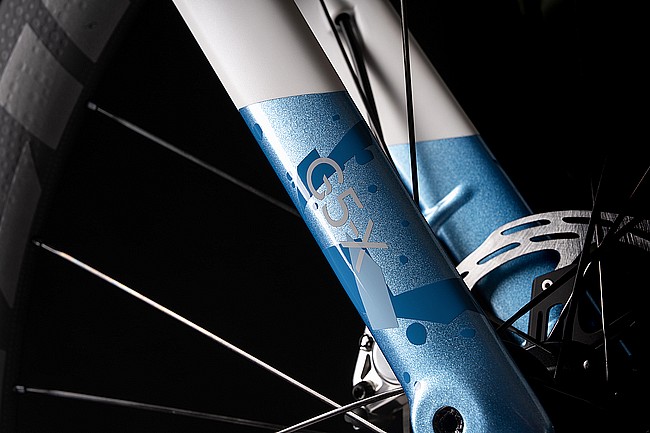

- Fork: Colnago G5-X carbon fork for disc brakes, fully integrated cables, 28.6mm steerer tube
- Headset: Integrated; 42x52x7mm upper and lower bearings, 45°x45°

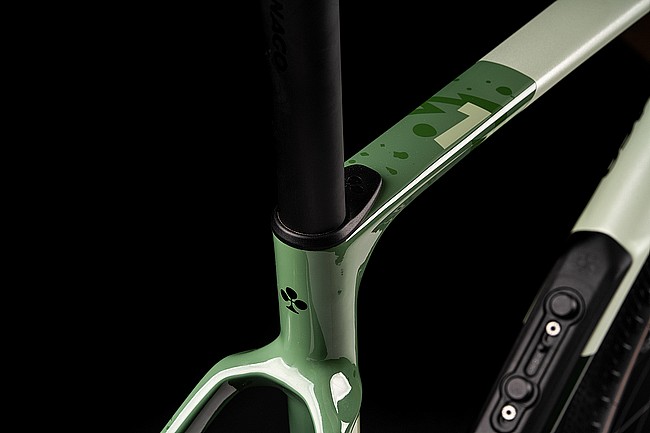

- Seatpost: Colnago carbon, 27.2mm round section, -15mm offset
- Thru-Axles: Front: 12x100mm; Rear: 12x142mm UDH standard
- Shifting System: SRAM RED XPLR AXS E1 1x13
- Rear Derailleur and Chain: SRAM RED XPLR AXS E1
- Chainring: SRAM RED XPLR AXS E1 40T
- Cassette: SRAM RED XPLR AXS E1 10-46T (13-speed)
- Bottom Bracket: BSA 68mm
- Crank Length: Sizes 450-480: 170mm; Sizes 510-570: 172.5mm
- Brakes: SRAM RED XPLR AXS E1 disc brakes and levers; 160mm front and rear rotors
- Wheels: Zipp 303 XPLR SW, carbon hookless (Tubeless Straight Side)
- Rim Height and Internal Width: 54mm deep, 32mm internal
- Hubs: Zipp ZR1 Disc Brake, Centerlock rotor interface, 66 points of engagement
- Tires: Goodyear XPLR Inter TLR 700x50
- Cockpit: Colnago CC.01 Wide integrated cockpit, fully integrated cables
- Handlebar Width: Size 450: 400mm; Sizes 480-540: 420mm; Size 570: 440mm
- Stem Length: Sizes 450-480: 90mm; Size 510: 100mm; Sizes 540-570: 110mm
- Saddle: Selle Italia Novus
- Handlebar Tape: Colnago Grip Black
