In Stock & Ready To Ship — XT/Ultegra RT-MT800 Disc Rotors

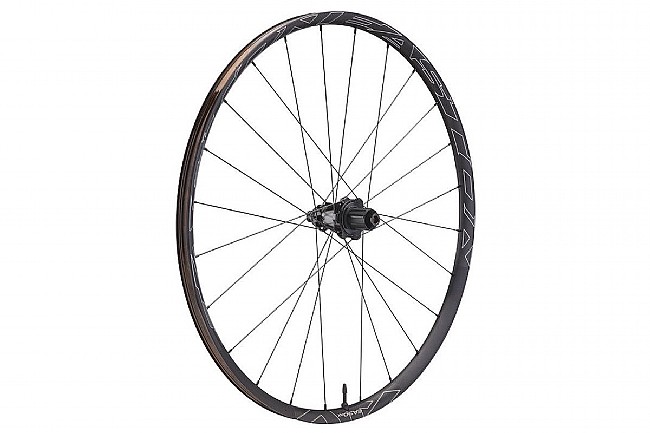

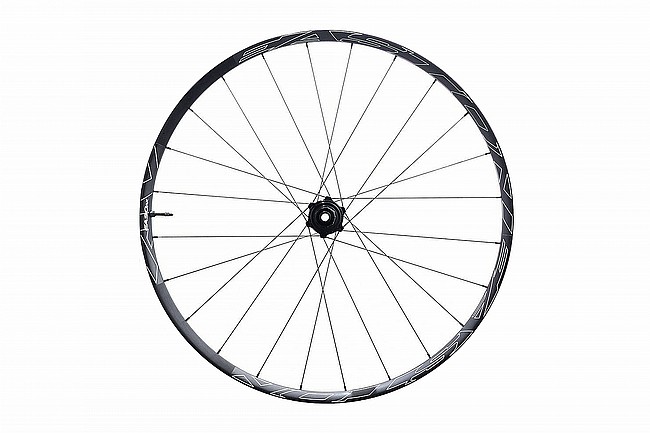

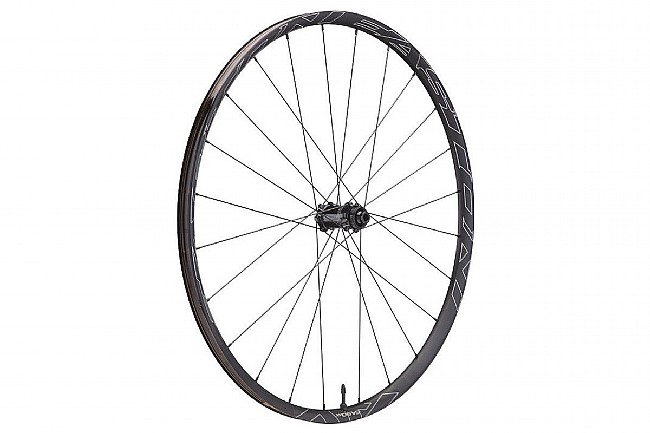

Easton EA90 AX Disc 700c Adventure Wheel Easton EA90 AX Disc 700c Adventure Wheelset
Easton EA90 AX Disc 700c Adventure Wheel Easton EA90 AX Disc 700c Adventure Wheelset
Click Here for Larger Image
Easton EA90 AX Disc 700c Adventure Wheel Easton EA90 AX Disc 700c Adventure Wheelset
Easton EA90 AX Disc 700c Adventure Wheel Easton EA90 AX Disc 700c Adventure Wheelset

Easton EA90 AX Disc 700c Adventure Wheel

Mfg PartNum:
Out of Stock
Ships Free!
Earn $25.49 in VIP credit. Click to Learn More.
This model is not eligible for VIP points
Please Confirm Model

Backorder: This item is currently out of stock but is available to purchase today as a backorder. The expected availability date shown above is our best estimate as to when it will be shipped to you, but this date is subject to change based on our receipt of this item from its vendor. Shipping in the continental US is free for all backorder items (for international orders, our customer service team will contact you when the item is available to ship). Your credit card will not be charged until your item ships (Paypal requires payment up front, but you can cancel for full refund). Anytime prior to shipment, your backorder can be cancelled by contacting our customer service team.

For the road less traveled.

The all new Easton EA90 AX Wheels have been designed for days like these: gravel epics, strange roads and the opportunity for something different. The EA90 AX boasts a wide 25mm internal rim bed that is ready for gravel and fits adventure tire profiles from 35-55c to keep you rubber side down when the going gets tough.

Its asymmetrical design optimizes spoke tension balance, wheel durability and stiffness. Laced to the time-proven Road Vault Hubs, the EA90 AX wheelset is a lightweight, fast and versatile adventure upgrade that strikes a balance between the road less traveled and the race ahead.


  • Tubeless ready to keep you rolling even when the terrain gets rough
  • 12mm Thru axle front and rear provide rigidity and solid breaking (convertible to QR and 15mm TA with kits sold separately)
  • Lightweight aluminum construction and sharp graphics are strong and stylish


  • Rim Material: Welded aluminum.
  • Wheel Size: 700c.
  • Tire Type: Clincher, tubeless-ready.
  • Rim Depth: 27mm.
  • Rim Width: 19.5mm (internal), 24mm (external).
  • Brake Compatibility: Disc, Center Lock rotor compatible.
  • Hubs: Easton VAULT.
  • Spokes: Sapim straight-pull, double-butted.
  • Spoke Nipple: Alloy external nipples.
  • Spoke Count: 20 front / 24 rear.
  • Claimed Weight: 1560 grams.
  • Manufacturer Warranty: 2 years.

Note: these wheels are sold as front and rear separately. The price shown after selecting an option from the dropdown is for that single wheel.

FREE Cassette Installation - Order a cassette along with a wheelset and we can install the cassette for free. Cassette installation requires special tools that not all our customers have. The cassette will be professionally installed and torqued to spec. Just add "Please install cassette" to your order notes at checkout and we'll take care of you.

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

The product weight specified is an approximate weight based on the manufacturer's specifications (if available) or our measurement of one or two examples. For most products, the weight will typically vary by 5% to 10%.

Wheel Features: Disc Brake Compatible

Disc Bolt Pattern: Center Lock

Front Hub Spacing: 12x100 mm

Rear Hub Spacing: 12x142 mm

Hub Drilling: 24 Hole

Rim Depth: 21 mm

Rim Width: 25 Internal mm

Rim Width: 29 External mm

Rim Diameter: 622

RimSize: 622

Spokes: Sapim Straight-pull double butted

Weight: 1625 g

Finish: Matte Anodize/Vinyl Decals

Hubs: Easton Vault Center Lock

Wheel Size: 700C/29 (ISO 622)

Cassette Type: Shimano/SRAM 11 Speed Road

Cassette Type: XDR

Front - Centerlock - 12x100

Mfg PartNum: 8023054

Axles: Thru-Axle

Brake Compatibility: Centerlock Disc

Tire Compatibility: Clincher Tubeless Ready

Rear - Centerlock - 12x142 - Shimano 11sp

Axles: Thru-Axle

Brake Compatibility: Centerlock Disc

Tire Compatibility: Clincher Tubeless Ready

Mfg PartNum: 8023055

Rear - Centerlock - 12x142 - Sram XDR

Mfg PartNum: 8023135

Axles: Thru-Axle

Brake Compatibility: Centerlock Disc

Tire Compatibility: Clincher Tubeless Ready

Ordered by Most Relevant First
5 stars
4 stars
3 stars
2 stars
1 stars
Reviewed 3/26/2021
by Q-Ball
Cycling Enthusiast
Canby, Oregon
Value Rating
Overall Rating
3 of 3 customers found this review helpful.
Solid choice for aluminum gravel wheels

I was looking for a good upgrade over the stock WTB wheels that came on my new EVIL CH gravel bike. The stock wheels weren't terrible but they were a bit heavier and flexier than I would have liked - so the search was on. The check list included, less weight, wider IW, good hub engagement, SRAM-XDR driver, quality materials, good value, and available stock. The Easton EA90 AX Disc wheels hit all the check marks and are pretty good looking to boot. Installation was was very easy as was the moving my Pirelli Cinturato Gravel M 45mm tires set up tubeless from the OEM WTB wheels to the new Eastons. On the 1st spin around the block, I noticed that the wheels were quicker to spin up and seem to hold line a little better on some rough pavement patches but the real test will be on some singletrack trail on one of my routes when they reopen on 4/15 as they are seasonal. The hub engagement is good but not what I'd call super high at 6 degrees but perfectly acceptable for the planned use of these wheels. Part of that plan is to use them in the backcountry so I'll trade ultimate engagement for durability and single length replacement spokes in this case. So far, so great!
