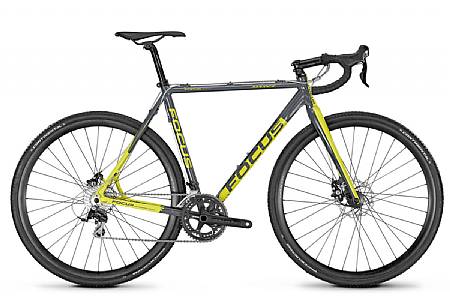

Focus Bikes Mares AX 2.0 Disc

Grey/Acid GreenGrey/Acid Green
Click image above to zoom.
Your
Price:
$1,679.99
ea.
Earn
16799
VIP Points
What's This?
(
$167.99
credit toward your next order)
Why Shop at
BikeTiresDirect.com
Qty:
add to cart
Overweight Shipping Charges Apply
Click for Shipping Quote

The Mares AX 2.0 Disc pushes the limits of performance and value while delivering reliable stopping power in the messiest 'cross conditions.

The triple butted alloy frame coupled with a tapered head tube and new carbon fork make this frameset stiff, light and affordable. Top tube routed cables ensure reliable braking and shifting through muddy conditions.

With the CX-specific "Bull Dog" carbon fork comes more efficient front brake cable routing as well. Focus uses a fork crown mounted housing stop for better stopping power and modulation.

The component spec. is just as solid with a Shimano 105 drivetrain, FSA cranks and cockpit, Tektro mechanic disc brakes and Concept SL wheels.

Note: Other colors and sizes may be available for this item. Please contact us for specific availability information. Some Focus bikes currently in stock may require an extra 24 hours for assembly prior to shipping*.

*This delay may also apply for test rides at our Portland, OR retail store.

  • Frame: 2013 Mares AX Alloy Disc with tapered headtube
  • Fork: 2013 FOCUS Bull Dog CX Carbon Disc with tapered steerer
  • Wheelset: Concept SL Disc Clincher (700c, 135mm rear axle spacing)
  • Tires: Continental Cyclocross Race
  • Drivetrain: Shimano 105
  • Gearing: 46/36t chainrings; 11-28t cassette
  • Shifters: Shimano 105
  • Crankset: FSA Gossamer
  • Brakes: Tektro Lyra Mechanical Disc; 160mm/140mm
  • Handlebar: Concept EX
  • Stem: Concept EX
  • Seatpost: Concept EX
  • Saddle: Concept EX

Available in sizes XS-XL (50-58cm), Sizing details and Geometry are available on the Focus website.

Overweight shipping charges apply for this item so shipping promotions for other products may not apply. To get a shipping quote, add the item to your shopping cart and click the Get Shipping Quote button.

No International Shipping. The manufacturer of this product does not allow us to ship outside the United States and U.S. Territories except to US diplomatic and military base addresses (APO/FPO).

Focus Mares AX Geometry
Seat Tube (center-top) Top Tube (effective) Head Tube HT Angle ST Angle BB Drop
50cm (XS) 51.5cm 105mm 70-deg. 74.5-deg. 70mm
52cm (S) 52.8cm 105mm 70-deg. 74.5-deg. 70mm
54cm (M) 53.8cm 115mm 70.5-deg. 74-deg. 70mm
56cm (L) 55.3cm 125mm 71-deg. 73-deg. 70mm
58cm (XL) 57.1cm 140mm 71-deg. 73-deg. 70mm
60cm (XXL) 58.7cm 155mm 71-deg. 73-deg. 70mm
62cm (3XL) 60.3cm 170mm 72-deg. 73-deg. 70mm
Fork Rake (all sizes): 45mm
Chainstay Length (all sizes): 425mm
